Fuel Pressure Sensor
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Assembly tool T10118
- Socket wrench insert 27 mm VAS 5301/7
Removing
WARNING:
Fuel system is under pressure! Fuel pressure must be reduced to a residual pressure before opening high pressure area of injection system. Refer to BEFORE OPENING HIGH PRESSURE FUEL INJECTION SYSTEM .
-- Disconnect coolant pipe and oil dipstick guide from intake manifold -arrows- and pull off oil dipstick guide upward from engine.
Fig 1: Disconnecting Coolant Pipe And Oil Dipstick Guide From Intake Manifold And Pulling Off Oil Dipstick Guide Upward From Engine

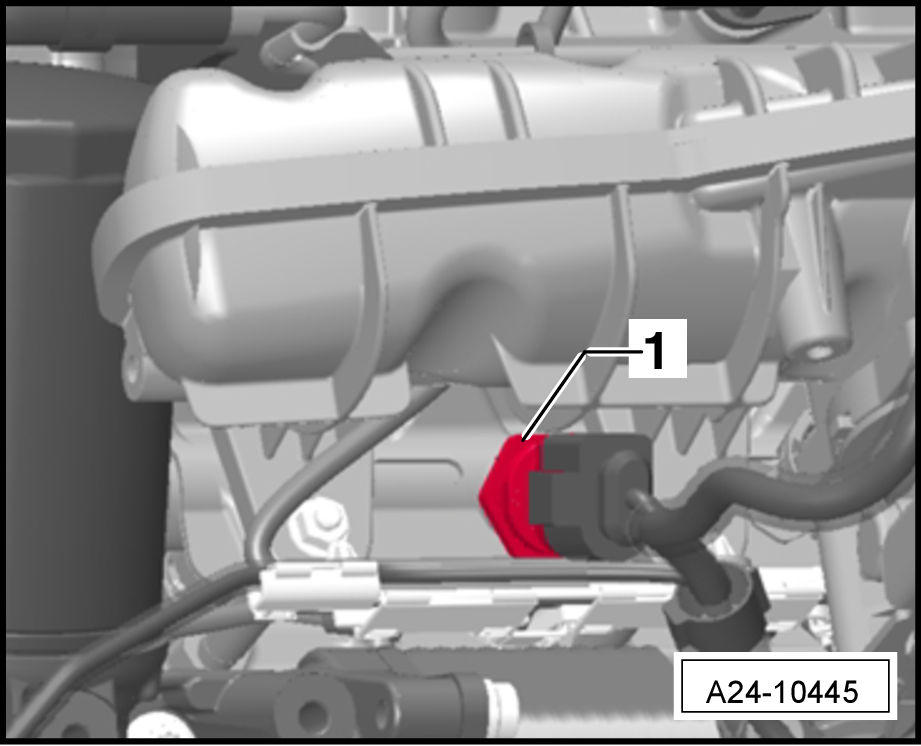

-- Disengage connector from Fuel Pressure Sensor -G247- using assembly tool T10118.
-- Remove Fuel Pressure Sensor -G247- using socket wrench insert 27 mm VAS 5301/7.
Installing
-- Installation is in reverse order of removal.
-- Tightening specifications of connection "30 Nm" must be checked before installing Fuel Pressure Sensor -G247-.
- Fuel Pressure Sensor -G247- tightening specifications. Refer to FUEL RAIL ASSEMBLY OVERVIEW .
