Ribbed Belt TENSIONER

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove ribbed belt. Refer to RIBBED BELT .

NOTE:

The tensioner is not locked.

-- Remove bolt -arrow- and remove ribbed belt tensioner.

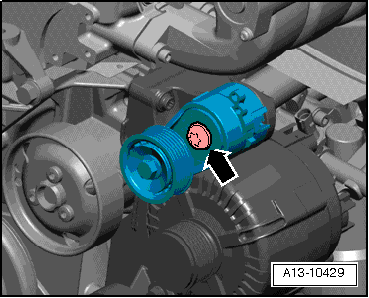

Fig 1: Identifying Ribbed Belt Tensioner Bolt

Courtesy of AUDI OF AMERICA, LLC

Installing

Tightening specifications, refer to RIBBED BELT DRIVE COMPONENT OVERVIEW .

Installation is in reverse order of removal, note the following:

-- Install ribbed belt. Refer to RIBBED BELT .
