Crankshaft Seal, Replacing

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Assembly Tool T10122
Pulling Hook T20143

Procedure

Transmission removed.

-- Remove dual mass flywheel. Refer to DUAL MASS FLYWHEEL .

-- Pry out sealing ring with T20143/2.

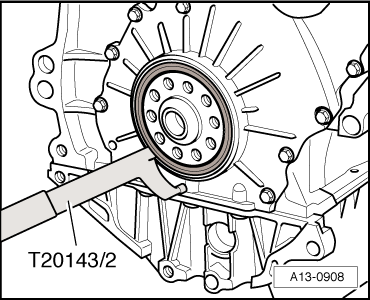

Fig 1: Prying Out Oil Seal Using Pressing-Out Tool T20143/2

Courtesy of AUDI OF AMERICA, LLC

-- Clean running and sealing surface.

NOTE:

Do not lubricate sealing ring before pressing in.

-- Slide new sealing ring -A- over T10122/1 onto T10122/2.

Fig 2: Identifying Seal, Sleeve T10122/1 And Assembly Tool T10122/2

Courtesy of AUDI OF AMERICA, LLC

Installation position: Closed side faces toward fitting sleeve.

-- Separate fitting sleeve and guide sleeve.

-- Place T10122/2 with sealing ring onto crankshaft.

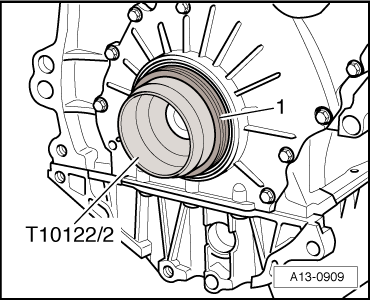

Fig 3: Inserting Guide Sleeve T10122/2 With Oil Seal Onto Crankshaft

Courtesy of AUDI OF AMERICA, LLC

-- Press sealing ring in evenly all around with thrust piece T10122/3 until flush.

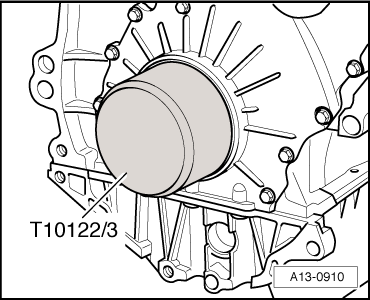

Fig 4: Pressing In Oil Seal With Press Tool T10122/3 Evenly And Flush

Courtesy of AUDI OF AMERICA, LLC

The rest of the installation is in reverse order of removal, note the following:

-- Install dual mass flywheel. Refer to DUAL MASS FLYWHEEL .
