Ribbed Belt

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Locking Pin T10060A

Removing

-- Disconnect the electrical connector on the mass airflow (MAF) sensor -G70- -3-.

Fig 1: Mass Air Flow (MAF) Sensor G70 Electrical Harness Connector, Clips & Front Air Intake Connector On Lock Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Open clips -1 and 2- and remove air guide hose from MAF sensor.

-- Remove front air intake connector on lock carrier -4-.

-- Remove engine cover.

-- Pull the Evaporative Emission (EVAP) canister with connected lines upward -arrow- out of the retainer and lay it aside.

Fig 2: Identifying EVAP Canister

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Before removing the ribbed belt, mark the turning direction on it with chalk or a felt tip pen. A reversed turning direction can cause damage to the belt under operating conditions.

-- Mark the rotation direction on the ribbed belt.

-- Pivot the ribbed belt tensioner in direction of -arrow- to relieve tension on ribbed belt.

Fig 3: Identifying Method To Relieve Tension On Poly V-Belt

Courtesy of AUDI OF AMERICA, LLC

-- Secure tensioning element using the T10060A.

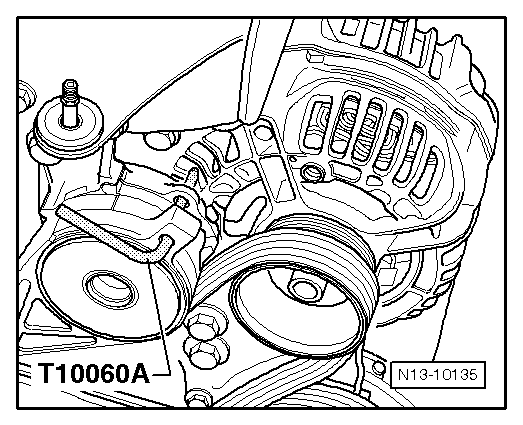

Fig 4: Identifying Lock Tensioner With Locking Pin T10060 A

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt.

Installing

Install in reverse order of removal. Note the following:

NOTE:

Make sure, before installing ribbed belt, that all ancillaries (generator and Air Conditioner (A/C) compressor) are secured tightly.

-- Place ribbed belt onto belt pulleys of crankshaft and A/C compressor.

Fig 5: Identifying Ribbed Belt Routing

Courtesy of AUDI OF AMERICA, LLC

-- Place ribbed belt onto generator belt pulley lastly, and release tensioner.

-- Check ribbed belt for correct positioning.

-- Start the engine and check the belt running.
