Fastener Tightening Specifications

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Component	Bolt Size	Nm
Cable Bracket	-	10
Camshaft Adjuster¹	-	20 + 45°
Camshaft Adjustment Valve 1	-	4
Camshaft Position Sensor	-	10
Camshaft Sprocket¹	-	50 + 180°
Chain Tensioner	-	10
Coolant Pump	-	15
Crankshaft Toothed Belt Sprocket	-	90 + 90°
Damper Roller	-	25
Engine Support	-	45
Exhaust Manifold Stud Bolt	-	20
Housing	-	10
Intake Manifold Stud Bolt	-	10
Lower Toothed Belt Guard	-	8
Phase Sensor	-	10
Rear Toothed Belt Guard²	-	10
Sealing Flange	-	35
Semi-Automatic Tensioning Roller, Nut	-	25
Transport Strap	-	25
Upper Toothed Belt Guard	-	10
Valve Housing	-	4
¹ Always replace ² Insert with locking fluid

Cylinder Head Cover Tightening Sequence

-- Install bolts -1 to 14- and tighten by hand.

Fig 1: Identifying Cylinder Head Cover Bolts Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1 to 14- diagonally to 10 Nm.

Loosening the Cylinder Head

-- Loosen cylinder head bolts in sequence shown and remove.

Fig 2: Cylinder Head Bolt Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

Cylinder Head Tightening Sequence

-- Tighten cylinder head bolts in sequence -1 to 10- as follows.

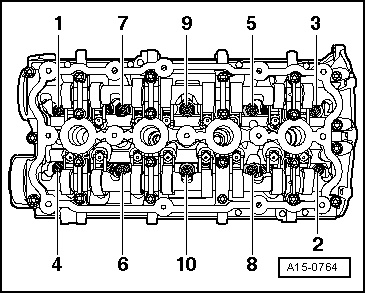

Fig 3: Identifying Cylinder Head Bolts Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- 1. Tighten to 40 Nm using a torque wrench.

-- 2. Tighten further 90° using a rigid wrench.

-- 3. Tighten further 90° using a rigid wrench.

Guide Frame Tightening Sequence

Fig 4: Identifying Cylinder Head Bolts Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Replace bolts

1. Hand-tighten bolts in several stages in sequence -1 through 6-.

2. Tighten the bolts in sequence -1 through 6- to 8 Nm using a torque wrench.

3. Give 90° (¹ /₄ turn) additional turn in -1 through 6- sequence using rigid wrench.
