Front Exhaust Pipe With Catalytic Converters And Front Muffler

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove resonance tube -2- from air guide hose.

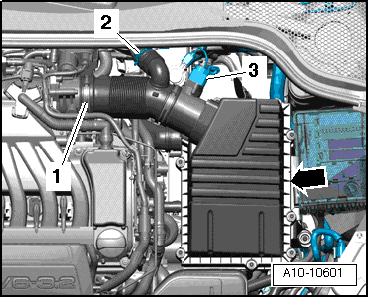

Fig 1: Identifying Air Guide Hose, Resonance Tube And Sensor -G70- Electrical Connector
GWWA10-10601Courtesy of AUDI OF AMERICA, LLC

-- Remove air guide hose -1- from throttle valve control module -J338-.

-- Disconnect the electrical connector -3- for the mass air flow sensor -G70-.

-- Detach upper section of air filter housing -arrow- and remove air filter insert.

-- Remove bolts -arrows- and remove air duct.

Fig 2: Identifying Bolts -Arrows- And Air Guide
GWWA10-10602Courtesy of AUDI OF AMERICA, LLC

-- Remove lower section of air filter housing -arrows-.

Fig 3: Identifying Screws For Lower Portion Of Air Cleaner Housing
GWWA10-1880Courtesy of AUDI OF AMERICA, LLC

-- Remove electrical connectors from bracket and disconnect.

-- Free up electrical wires.

Fig 4: Disconnecting Heated Oxygen Sensor (HO2S) Electrical Harness Connector
GWWA24-10262Courtesy of AUDI OF AMERICA, LLC
  1. For Heated Oxygen Sensor (HO2S) 2 -G108-
  2. For Heated Oxygen Sensor (HO2S) -G39-
NOTE:

Ignore -3-.

-- Remove nuts accessible from above from front exhaust pipe to exhaust manifold connection.

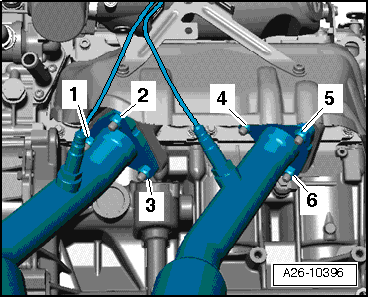

Fig 5: Identifying Exhaust Manifold Nuts
GWWA26-10396Courtesy of AUDI OF AMERICA, LLC

-- Remove noise insulation in center by loosening mounting parts -1 through 4-.

Fig 6: Center Noise Insulation Fasteners And Center Noise Insulation Panel
GWWA10-10600Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -1- and -2- under vehicle floor.

Fig 7: Removing Retaining Screws And Cover
GWWA24-10259Courtesy of AUDI OF AMERICA, LLC

-- Remove cover from oxygen sensor electrical connector bracket.

-- Remove bolt -3- and free up electrical wiring to oxygen sensors.

-- Remove electrical connectors from bracket and disconnect:

Fig 8: Disconnecting Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) Electrical Harness Connector
GWWA24-10260Courtesy of AUDI OF AMERICA, LLC
  1. For Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWO) -G130-
  2. For Oxygen Sensor 2 After Catalytic Converter -G131-

-- Remove nuts accessible from below from front exhaust pipe to exhaust manifold connection.

Fig 9: Identifying Exhaust Manifold Nuts
GWWA26-10396Courtesy of AUDI OF AMERICA, LLC

-- Remove exhaust system bracket and tunnel brace -arrows-.

Fig 10: Identifying Exhaust System Bracket Bolts
GWWA26-10398Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Risk of damaging decoupling elements.

  • Do not bend decoupling element in front exhaust pipe more than 10°.

-- Disconnect exhaust system at clamping sleeve -1-.

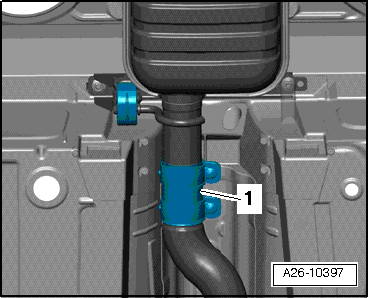

Fig 11: Identifying Exhaust System Clamping Sleeve
GWWA26-10397Courtesy of AUDI OF AMERICA, LLC

-- Remove front exhaust pipes with catalytic converters and front muffler.

Installing

Installation is in reverse order of removal, note the following.

NOTE:

Replace seals and self-locking nuts.

-- Install exhaust system free of stress. Refer to EXHAUST SYSTEM, INSTALLING .
