Valve Timing, Checking

-- Remove timing chain upper cover. Refer to UPPER TIMING CHAIN COVER .

-- Remove the noise insulation. Refer to Removal and Installation .

-- Remove the bolts -arrows-.

Fig 1: Air Guide Pipe And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Lift the clamps -1 and 2- and remove the air guide pipe.

-- Turn the vibration damper, from underneath, in direction of engine rotation to "TDC" -arrow-.

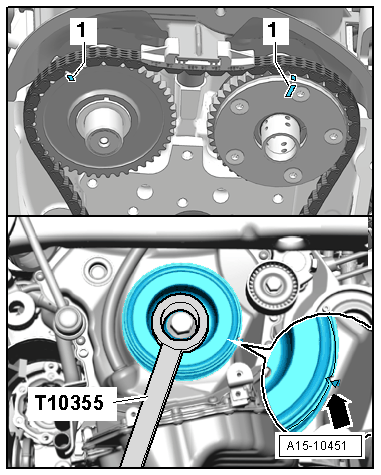

Fig 2: Identifying Vibration Damper Rotated Into "OT" Position Using Counter Hold Tool T10355

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Use a ratchet with a 24 mm socket to turn the vibration damper. Always turn vibration damper in direction of engine rotation to "TDC". Do not turn the vibration damper backward to get to TDC!

The notch on the vibration damper must line up with the arrow marking on the timing chain lower cover (use a mirror).
The markings -1- on the camshafts must point upward.

-- Measure the distance from the outer edge -A- to the marking -B- on the intake camshaft.

Fig 3: Measuring Distance From Outer Edge To Marking On Intake Camshaft

Courtesy of AUDI OF AMERICA, LLC

Specified value: 61 to 64 mm.

-- Once the specified value is reached, measure the distance between the marking on the intake camshaft -B- and the marking on the exhaust camshaft -C-.

Fig 4: Measuring Distance Between Marking On Exhaust Camshaft And Marking On Intake Camshaft

Courtesy of AUDI OF AMERICA, LLC

Specified value: 124 to 126 mm

NOTE:

If one tooth has an offset, there will be a deviation of approximately 6 mm from the specified value. Install the timing chain once again if there is an offset.
