Outside Air Temperature Sensor -G17-

Removing

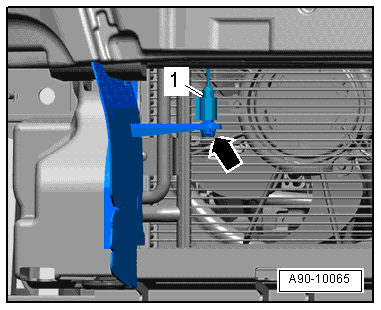

Fig 1: Identifying Outside Air Temperature Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Remove front bumper cover. Refer to Removal and Installation .

-- Disconnect electrical connector -1-.

-- Carefully press retaining clips together -arrow- and remove Outside air temperature sensor upward from bracket.

Installing

Install in reverse order of removal. Note the following:

-- Install front bumper cover. Refer to Removal and Installation .
