Right/Left MULTIFUNCTION Buttons On Steering Wheel -E441- / -E440-, Removing And Installing: Removing

-- Remove the driver airbag, refer to Driver Side Knee Airbag with IgniterN295, Removing and Installing .

-- Remove the connecting wires from the guides in the steering wheel.

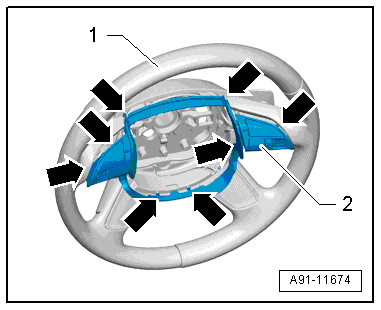

-- Loosen the trim panel -2- with the multifunction buttons by hand -arrows- and remove it approximately 5 mm from the steering wheel -1-.

Fig 1: Identifying Trim With Multifunction Buttons

Courtesy of AUDI OF AMERICA, LLC

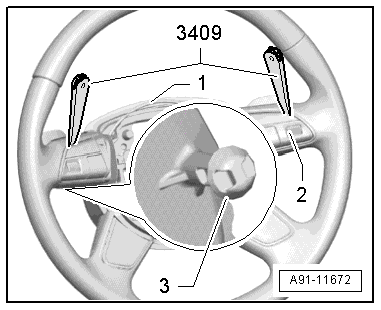

-- Release the multifunction buttons -2- using the Trim Removal Wedge3409 next to the retainers -3-. Use the Trim Removal Wedge3409 as shown in the illustration.

Fig 2: Identifying Multifunction Buttons Are Attached To Trim

Courtesy of AUDI OF AMERICA, LLC

-- While doing this, be careful of the connectors to the tiptronic switches -2-.

Fig 3: Be Careful Of Connectors To Tiptronic Switches

Courtesy of AUDI OF AMERICA, LLC

-- Unlock and disconnect the connector -2- from the multifunction buttons.

-- Remove the trim panel with multifunction buttons from the steering wheel.

The multifunction buttons are attached to the trim.

-- Unlock and disconnect the connector from the multifunction button.

-- Remove the bolts -3- and push the multifunction button -2- out of the trim panel -1-.

Fig 4: Identifying Screws And Press Multifunction Button Out Of Trim, Removal

Courtesy of AUDI OF AMERICA, LLC

The additional wire on the right multifunction button remains on the button.
