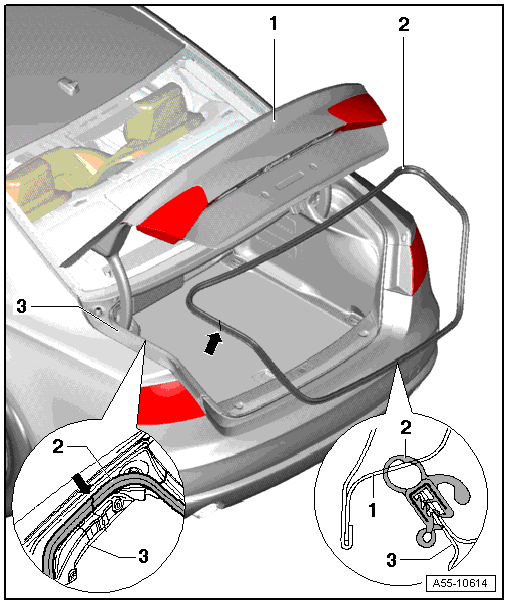

Rear Lid Seal, Removing And Installing
- Rear Lid
- Rear Lid Seal
- To remove, remove seal from body flange.
- Align the seal so the vulcanized end -arrow- is behind the hole in the side panel -arrow-.
- Beginning at the seam, press the seal all around onto the body flange.
- Body Flange
