Overview - Rear Lid, Grip Piece

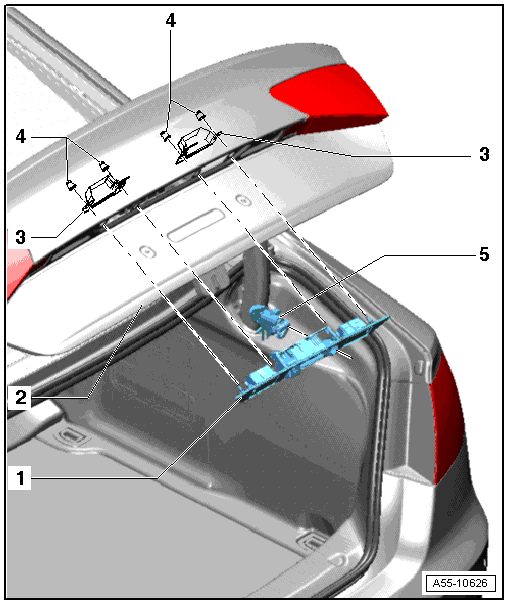

Fig 1: Overview Of Rear Lid, Grip Piece
GWWA55-10626Courtesy of AUDI OF AMERICA, LLC
  1. Handle
    • The rear lid trim panel is removed, refer to Luggage Compartment Trim Panels .
    • Disconnect the connectors.

      -- Disengage the release cable from the rear lid lock.

    • The lock cylinder is removed.

      -- Remove the bracket and remove the outer grip piece from the rear lid.

  2. Rear Lid
  3. Bracket
  4. Nut
    • 6 Nm
  5. Lock Cylinder
