Release Cable, Engaging in Hood Lock

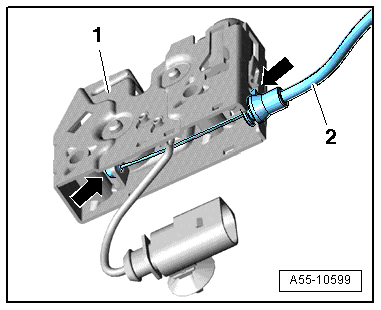

Fig 1: Identifying Release Cable

Courtesy of AUDI OF AMERICA, LLC

-- Insert the release cable -2- into the operating lever -left arrow- inside the hood lock -1-.

-- Install the release cable and the guide into the hood latch from underneath. Make sure the hooks -right arrow- latch into place.
