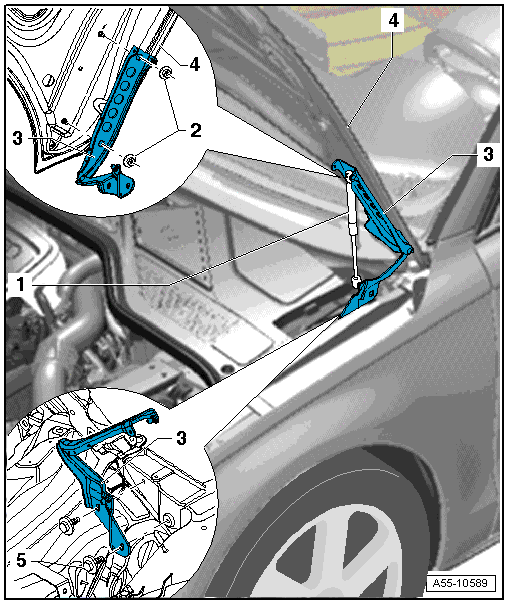

Hinges, Removing And Installing, Vehicles Without Pedestrian Protection
- Gas-Filled Strut
- Install the gas-filled strut tube on the hood side.
- Removing, refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Nut
- 21 Nm
- Hinge
-- Before removing a hinge, support the hood or secure it against falling.
-- Install the gas-filled strut, refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Remove the bolts -5- and nuts -2-.
- Install in reverse order of removal.
- Hood
- Bolt
- 21 Nm
