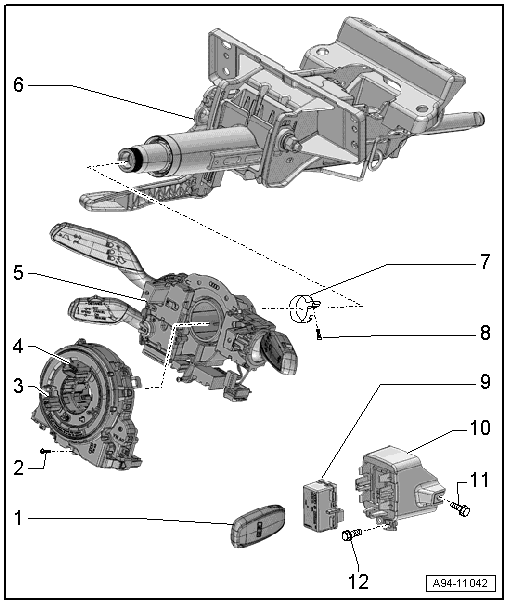

Steering Column Electronics Control Module -J527- And Electronic Ignition Lock Overview
- Ignition Key
- Screw
- 0.5 Nm
- Transport Protection
- Steering Column Electronic Systems Control Module -J527-
- With Airbag spiral spring/return spring with slip ring -F138-, Steering angle sensor -G85-
- Removing and installing, refer to STEERING COLUMN ELECTRONIC SYSTEMS CONTROL MODULE -J527- .CAUTION:
Risk of damaging coil connector.
- Coil connector with slip ring is not to be turned following removal.
- Connector assignment of Steering Column Electronic Systems Control Module -J527- STEERING COLUMN ELECTRONICS CONTROL MODULE -J527- CONNECTOR ASSIGNMENT
- Mount
- With Turn signal switch -E2-, Windshield wiper/washer switch -E22-.
- On vehicles with cruise control with Cruise control switch -E45-.
- Removing and installing, refer to TURN SIGNAL, CRUISE CONTROL SWITCH AND WINDSHIELD WIPER AND WASHER INTERMITTENT SWITCHES -E2- / -E45- / -E22- .
- Steering Column
- Clamping Ring
- Screw
- 6 Nm
- Anti-Theft Immobilizer Reading Coil -D2-
- Removing and installing, refer to ANTI-THEFT IMMOBILIZER READER COIL -D2- .
- Mount
- For the Anti-theft immobilizer reading coil -D2-.
- Removing and installing, refer to ANTI-THEFT IMMOBILIZER READER COIL MOUNT .
- Screw
- 3 Nm
- Screw
- 3 Nm
