Overview - Charge Air System, Hybrid Vehicles

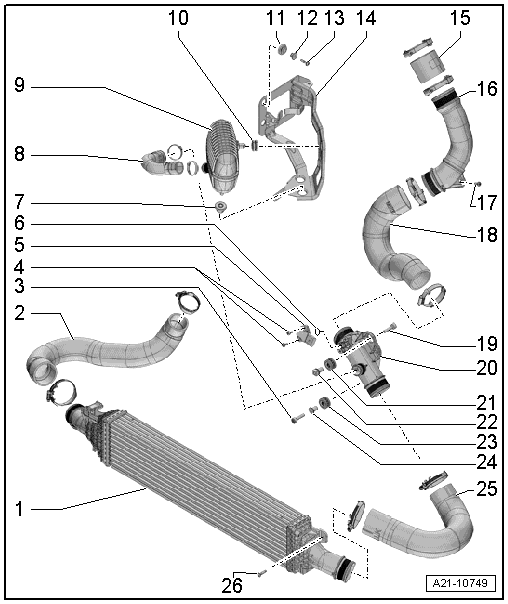

Fig 1: Overview Of Charge Air System - Hybrid Vehicles

Courtesy of AUDI OF AMERICA, LLC

1. Charge Air Cooler
   • Removing and installing, refer to CHARGE AIR COOLER, REMOVING AND INSTALLING, HYBRID VEHICLES .
2. Air Guide Hose
   • To turbocharger
   • Installing, refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS, AIR GUIDE WITH SCREW-TYPE CLAMPS .
3. Bolt
   • 23 Nm
4. Bolts
   • 9 Nm
5. Charge Air Pressure Sensor -G31-
   • Removing and installing, refer to CHARGE AIR PRESSURE SENSOR -G31-, REMOVING AND INSTALLING, HYBRID VEHICLES .
6. O-Ring
   • Replacing
7. Rubber Grommet
8. Air Guide Hose
   • To the resonator
   • Installing, refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS, AIR GUIDE WITH SCREW-TYPE CLAMPS .
9. Resonator
10. Rubber Grommet
11. Rubber Grommet
12. Spacer Piece
13. Bolt
    • 9 Nm
14. Bracket
15. Air Guide Hose
    • To the intake manifold
    • Installing, refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS, AIR GUIDE WITH SCREW-TYPE CLAMPS .
16. Air Guide
17. Bolt
    • 9 Nm
18. Air Guide Hose
19. Bolt
    • 23 Nm
20. Air Guide Pipe
21. Rubber Grommet
22. Spacer Piece
23. Rubber Grommet
24. Spacer Piece
25. Air Guide Hose
    • From charge air cooler
    • Installing, refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS, AIR GUIDE WITH SCREW-TYPE CLAMPS .
26. Bolt
    • 7 Nm
