Charge Air Pressure Sensor -G31-, Removing And Installing, Hybrid Vehicles: Removing

-- Remove the front left wheel spoiler, refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

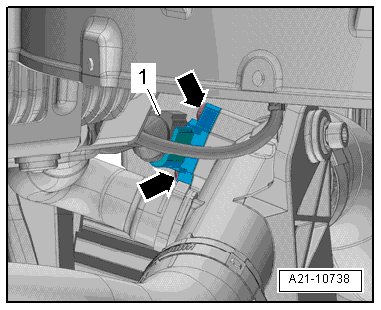

Fig 1: Charge Air Pressure Sensor -G31-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the Charge Air Pressure Sensor - G31-.
