Overview - Rear Lid Drive Unit

WARNING:

Perform an adaptation using Guided Functions in Guided Fault Finding under diagnosis address 6D after removing and installing Rear Lid Motor 1 -V444- or Rear Lid Motor 2 -V445-. Refer to Vehicle Diagnostic Tester.

Fig 1: Identifying Rear Lid Drive Unit Overview
GWWA55-10800Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid Motor 2 -V445-
    • The rear roof panel trim is removed. Refer to Removal and Installation .
    • Loosen the D-pillar trim in the drive area, and if necessary, carefully push it aside.
      NOTE:

      Remove or install drive unit only when rear lid is completely open.

      Before removing driving unit, loosen lock nuts on eccentric bolts.

    • Remove the connector -2-.
    • Loosen lock nut on drive unit. Refer to OVERVIEW - REAR LID DRIVE UNIT .
      NOTE:

      The eccentric bolt must be loose in the hinge arm hole. Refer to OVERVIEW - REAR LID DRIVE UNIT .

    • Release tension on eccentric bolts with a brief turn to the right, if necessary.
    • Remove the bolt -5- on the bracket -4-.
    • Remove the screw in the hinge arm, and remove the drive unit -1- to the side. Refer to OVERVIEW - REAR LID DRIVE UNIT .
  2. Bolt
    • 21 Nm
  3. Connector
    • Disconnect the connector before removing the drive unit.
  4. Bracket
    NOTE:

    Bracket is positioned with a device in factory and must not be adjusted.

    If bracket must be replaced, for example, when doing repairs after an accident, proceed as follows.

    • Rear lid must be installed with the gas-filled strut.
    • Secure the bracket -4- lightly with a screw -5- on the drive unit first.
    • Bracket must still be moveable.
    • Attach drive unit on rear lid hinge parallel to axle until it comes in contact with motor socket.
      CAUTION:

      Drive unit bushing must fit flat against hinge axle collar.

    • Secure the bracket -4- on the body side with the bolt -3- and tighten to 21 Nm.
    • Tighten the bolt -5- to 8 Nm.
    • Tighten the eccentric bolt with the lock nut to the drive unit to the tightening specification, refer to OVERVIEW - REAR LID DRIVE UNIT .
      NOTE:

      Upon tightening locking nuts, eccentric bolts are braced in hinge with no play.

      For this reason, you cannot counterhold eccentric bolt hex head with an open-end wrench when tightening locking nuts.

      When removing drive unit, this tension is released with a small turn to the right on eccentric bolt hex head, after you have loosened locking nuts.

    • Tighten the bolt to the drive fork -item 7- to the tightening specification. Refer to OVERVIEW - REAR LID DRIVE UNIT .
  5. Bolt
    • 8 Nm
  6. Roof Frame
  7. Bolt
    • Self-threading
    • Tightening specification, refer to item  7.
  8. Lid Hinge

Install the Rear Lid Motor 2 -V445- in the hinge

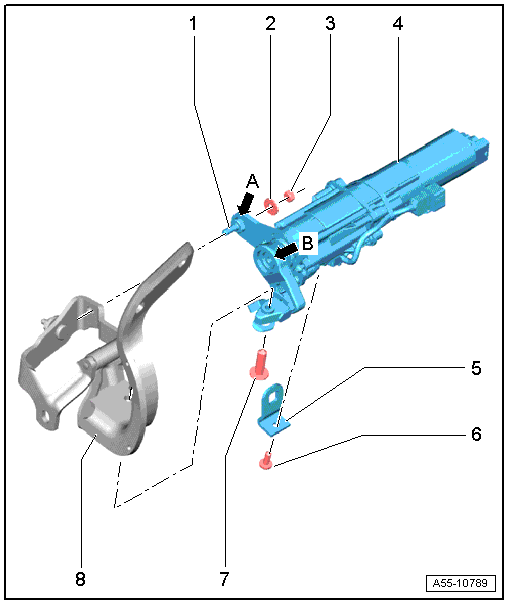

Fig 2: Identifying Rear Lid Motor
GWWA55-10789Courtesy of AUDI OF AMERICA, LLC
  1. Hex Head Eccentric Bolts
    NOTE:

    Upon tightening locking nuts, eccentric bolts are braced in hinge with no play.

    For this reason, you cannot counterhold eccentric bolt hex head with an open-end wrench when tightening locking nuts.

    When removing drive unit, this tension is released with a small turn to the right on eccentric bolt hex head, after you have loosened locking nuts.

  2. Window
  3. Lock Nut
    • 6 Nm
    • Before removing drive unit, loosen lock nuts on eccentric bolts.
    • Release eccentric bolt tension in hinge arm by rotating hex head to right, if necessary.
    • Self-locking
  4. Rear Lid Motor 2 -V445-
    • When installing, insert sideways with socket -arrow B- and loose eccentric bolts -arrow A- in hinge.
      NOTE:

      Drive unit socket must fit flat against hinge axle collar.

    • The drive unit arm then moves correctly on the rear lid hinge -7-.
    • Tighten the screw -5- to the tightening specification to attach the drive unit to the bracket -4-.
    • Tighten the locking nuts -2- to the tightening specification
    • Tighten the bolt -6- to the tightening specification.
  5. Bracket
    NOTE:

    Bracket is positioned with a device in factory and should not be adjusted.

    If bracket must be replaced, for example, when doing repairs after an accident, proceed as follows, refer to item  4.

  6. Bolt
    • 8 Nm
  7. Bolt
    • 21 Nm
    • Self-threading
  8. Rear Lid Hinge
