Gas-Filled Strut For Rear Lid, Removing And Installing: Notes
- Gas-Filled StrutNOTE:
After completely removing gas-filled strut, ensure correct position when installing.
Noise insulation element must be engaged in rear lid side.
- Open and support the rear lid when removing.

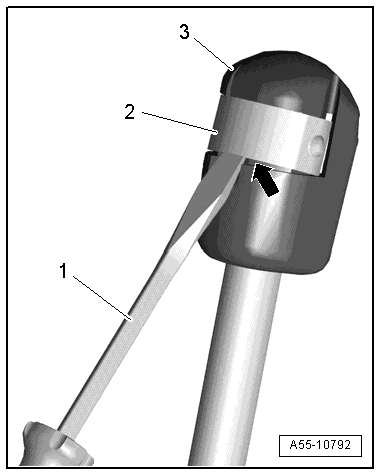

- Using screwdriver, lift retaining spring -2- as shown and remove gas-filled strut -1- from upper ball head pin -3-.
- Rear Lid
- Ball StudNOTE:
Should the ball head pin have to be removed or adjusted, then replace it.
- 20 Nm
- Locking spring
- Refer to Figure to remove the gas-filled strut, slightly lift the retaining spring -arrow- with a small screwdriver.
