Rear Door Lamps And Switches Overview

Window Regulator Button, Driver/Front Passenger Interior Locking Switch, Door Opener Illumination Bulb

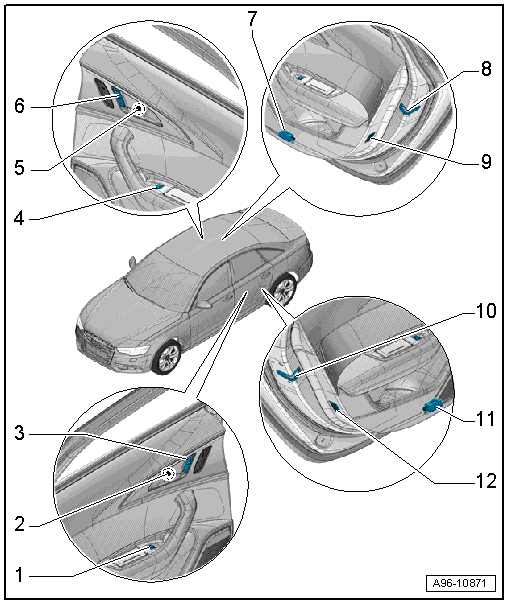

Fig 1: Identifying Window Regulator Button, Driver/Front Passenger Interior Locking Switch, Door Opener Illumination Bulb

Courtesy of AUDI OF AMERICA, LLC

1. Left Rear Power Window Button In Left Rear Door -E700-
   • Vehicles with right rear power window button in left rear door -E701-
   • Removal and installation, refer to REAR POWER WINDOW BUTTON IN REAR DOOR -E700- / -E705-
2. Left Rear Door Opener Illumination -L110-
   • Removal and installation, refer to REAR DOOR OPENER ILLUMINATION BULB -L110- / -L111-
3. Left Rear Interior Lock Switch -E273-
   • Removal and installation, refer to REAR INTERIOR LOCKING SWITCH -E273- / -E274-
4. Right Rear Power Window Button In Right Rear Door -E705-
   • Vehicles with right rear power window button in left right door -E706-
   • Removal and installation, refer to REAR POWER WINDOW BUTTON IN REAR DOOR -E700- / -E705-
5. Right Rear Door Opener Illumination -L111-
   • Removal and installation, refer to REAR DOOR OPENER ILLUMINATION BULB -L110- / -L111-
6. Right Rear Interior Lock Switch -E274-
   • Removal and installation, refer to REAR INTERIOR LOCKING SWITCH -E273- / -E274-
7. Right Rear Entry Lamp -W34-
   • 12 V, 3 W
   • Removal and installation, refer to REAR ENTRY LAMP -W33- / -W34-
8. Right Rear Door Contact Switch -F11-
   • Integrated in the door lock. Cannot be replaced separately if faulty
   • For replacing the door lock, refer to DOOR LOCK, REMOVING AND INSTALLING
9. Right Rear Door Warning Lamp -W38-
   • 12 V, 3 W
   • Removal and installation, refer to REAR DOOR WARNING LAMP -W37- / -W38-
10. Left Rear Door Contact Switch -F10-
    • Integrated in the door lock and cannot be replaced separately if faulty
    • For replacing the door lock, refer to DOOR LOCK, REMOVING AND INSTALLING
11. Left Rear Entry Lamp -W33-
    • 12 V, 3 W
    • Removal and installation, refer to REAR ENTRY LAMP -W33- / -W34-
12. Left Rear Door Warning Lamp -W37-
    • 12 V, 3 W
    • Removal and installation, refer to REAR DOOR WARNING LAMP -W37- / -W38-

Optional: Window Regulator Button, Front Passenger Seat Backrest Adjustment And Forward/Back Adjustment Button, Driver/Front Passenger Interior Locking Switch, Door Opener Illumination Bulb

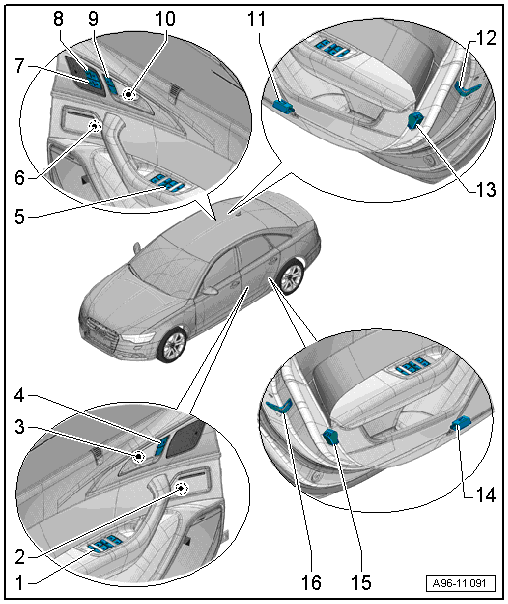

Fig 2: Identifying Optional: Window Regulator Button, Front Passenger Seat Backrest Adjustment And Forward/Back Adjustment Button, Driver/Front Passenger Interior Locking Switch, Door Opener Illumination Bulb

Courtesy of AUDI OF AMERICA, LLC

1. Rear Left Window Regulator Button
   • With Buttons -E700-, -E701-, -E702-, -E703- and -E699-
   • Removing and installing, refer to POWER WINDOW BUTTONS OPTIONAL
2. Left Rear Ashtray Illumination Bulb -L48-
   • Removal and installation, refer to REAR ASHTRAY ILLUMINATION BULB -L48- / -L49-
3. Left Rear Door Opener Illumination -L110-
   • Removal and installation, refer to REAR DOOR OPENER ILLUMINATION BULB -L110- / -L111-
4. Left Rear Interior Lock Switch -E273-
   • Removal and installation, refer to REAR INTERIOR LOCKING SWITCH -E273- / -E274-
5. Right Rear Window Regulator Button
   • With -E705-, -E706-, -E707-, -E708- and -E704-
   • Removing and installing, refer to POWER WINDOW BUTTONS OPTIONAL
6. Right Rear Ashtray Illumination Bulb -L49-
   • Removal and installation, refer to REAR ASHTRAY ILLUMINATION BULB -L48- / -L49-
7. Front Passenger Seat Forward/Back Adjustment Button -E603-
   • Removal and installation, refer to Backrest Adjustment Button -E425- /Front Passenger Seat Forward/Back Adjustment Button -E603-
8. Backrest Adjustment Button -E425-
   • Removal and installation, refer to Backrest Adjustment Button -E425- /Front Passenger Seat Forward/Back Adjustment Button -E603-
9. Right Rear Interior Lock Switch -E274-
   • Removal and installation, refer to REAR INTERIOR LOCKING SWITCH -E273- / -E274-
10. Right Rear Door Opener Illumination -L111-
    • Removal and installation, refer to REAR DOOR OPENER ILLUMINATION BULB -L110- / -L111-
11. Right Rear Entry Light -W34-
    • 12V, 3 W
    • Removal and installation, refer to REAR ENTRY LAMP -W33- / -W34-
12. Right Rear Door Contact Switch -F11-
    • Integrated in the door lock and cannot be replaced separately if faulty
    • For replacing the door lock, refer to DOOR LOCK, REMOVING AND INSTALLING
13. Right Rear Door Warning Lamp -W38-
    • 12V, 3 W
    • Removal and installation, refer to REAR DOOR WARNING LAMP -W37- / -W38-
14. Left Rear Entry Light -W33-
    • 12V, 3 W
    • Removal and installation, refer to REAR ENTRY LAMP -W33- / -W34-
15. Left Rear Door Warning Lamp -W37-
    • 12V, 3 W
    • Removal and installation, refer to REAR DOOR WARNING LAMP -W37- / -W38-
16. Left Rear Door Contact Switch -F10-
    • Integrated in the door lock and cannot be replaced separately if faulty
    • For replacing the door lock, refer to DOOR LOCK, REMOVING AND INSTALLING
