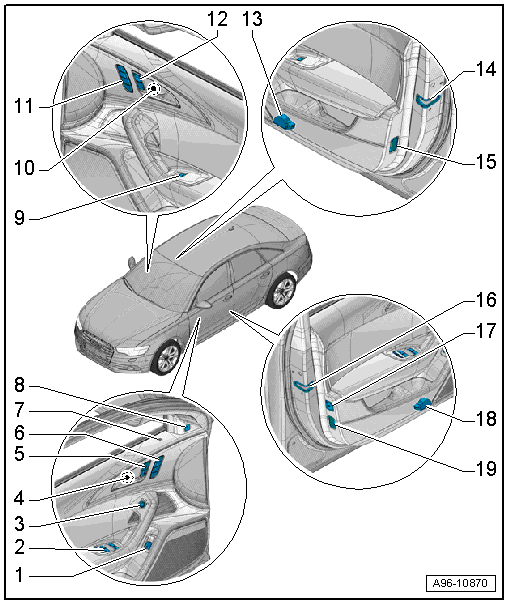

Front Door Lamps And Switches Overview
- Rear Lid Remote Control Lock Switch -E233-
- Removal and installation, refer to Rear Lid Remote Release Button -E233-
- Power Window Control Head In Driver Door -E512-
- With left front window regulator switch -E40-, right front power window switch in driver door -E81-, left rear window regulator switch in driver door -E53-, right rear window regulator switch in driver door -E55- and child safety lock button -E318- or left child safety lock button -E510-, right child safety lock button -E511-.
- Removal and installation, refer to Power Window Control Head in Driver Door -E512-
- Mirror Adjustment Switch -E43- or Folding Mirror Adjustment Switch -E168-
- Removal and installation, refer to Mirror Adjusting Switch -E43- /Folding Mirror Adjustment Switch -E43-
- Driver Door Opener Illumination -L108-
- Removal and installation, refer to DOOR OPENER ILLUMINATION BULB -L108- / -L109-
- Driver Interior Lock Switch -E150-
- Removal and installation, refer to DRIVER AND FRONT PASSENGER INTERIOR LOCKING SWITCH -E150- / -E198-
- Driver Seat Memory Program Control Head -E97-
- Removal and installation, refer to MEMORY SEAT CONTROL HEAD -E97- / -E277-
- Central Locking -SAFE- Indicator Lamp -K133-
- Removal and installation, refer to Central Locking -SAFE- Indicator Lamp -K133-
- Lane Change Assistance Button -E530-
- Overview, refer to LANE CHANGE ASSISTANCE OVERVIEW
- Front Passenger Door Window Regulator Switch -E107-
- Removal and installation, refer to Front Passenger Door Window Regulator Switch -E107-
- Front Passenger Door Opener Illumination -L109-
- Removal and installation, refer to DOOR OPENER ILLUMINATION BULB -L108- / -L109-
- Front Passenger Memory Seat Control Head -E277-
- Removal and installation, refer to MEMORY SEAT CONTROL HEAD -E97- / -E277-
- Front Passenger Interior Lock Switch -E198-
- Removal and installation, refer to DRIVER AND FRONT PASSENGER INTERIOR LOCKING SWITCH -E150- / -E198-
- Right Front Entry Lamp -W32-
- Removal and installation, refer to FRONT ENTRY LAMP -W31- / -W32-
- Front Passenger Door Contact Switch -F3-
- Integrated in the door lock. Cannot be replaced separately if faulty
- For replacing the door lock, refer to DOOR LOCK, REMOVING AND INSTALLING
- Front Passenger Door Warning Lamp -W36-
- 12 V, 3 W
- Removal and installation, refer to DOOR WARNING LAMP -W30- / -W36-
- Driver Door Contact Switch -F2-
- Integrated in the door lock. Cannot be replaced separately if faulty
- For replacing the door lock, refer to DOOR LOCK, REMOVING AND INSTALLING
- Alarm System Deactivation Switch -E217-
- Overview, refer to ULTRASONIC INTERIOR MONITORING OVERVIEW
- Left Front Entry Lamp -W31-
- Removal and installation, refer to FRONT ENTRY LAMP -W31- / -W32-
- Driver Door Warning Lamp -W30-
- 12 V, 3 W
- Removal and installation, refer to DOOR WARNING LAMP -W30- / -W36-
