Access/Start Authorization System Overview

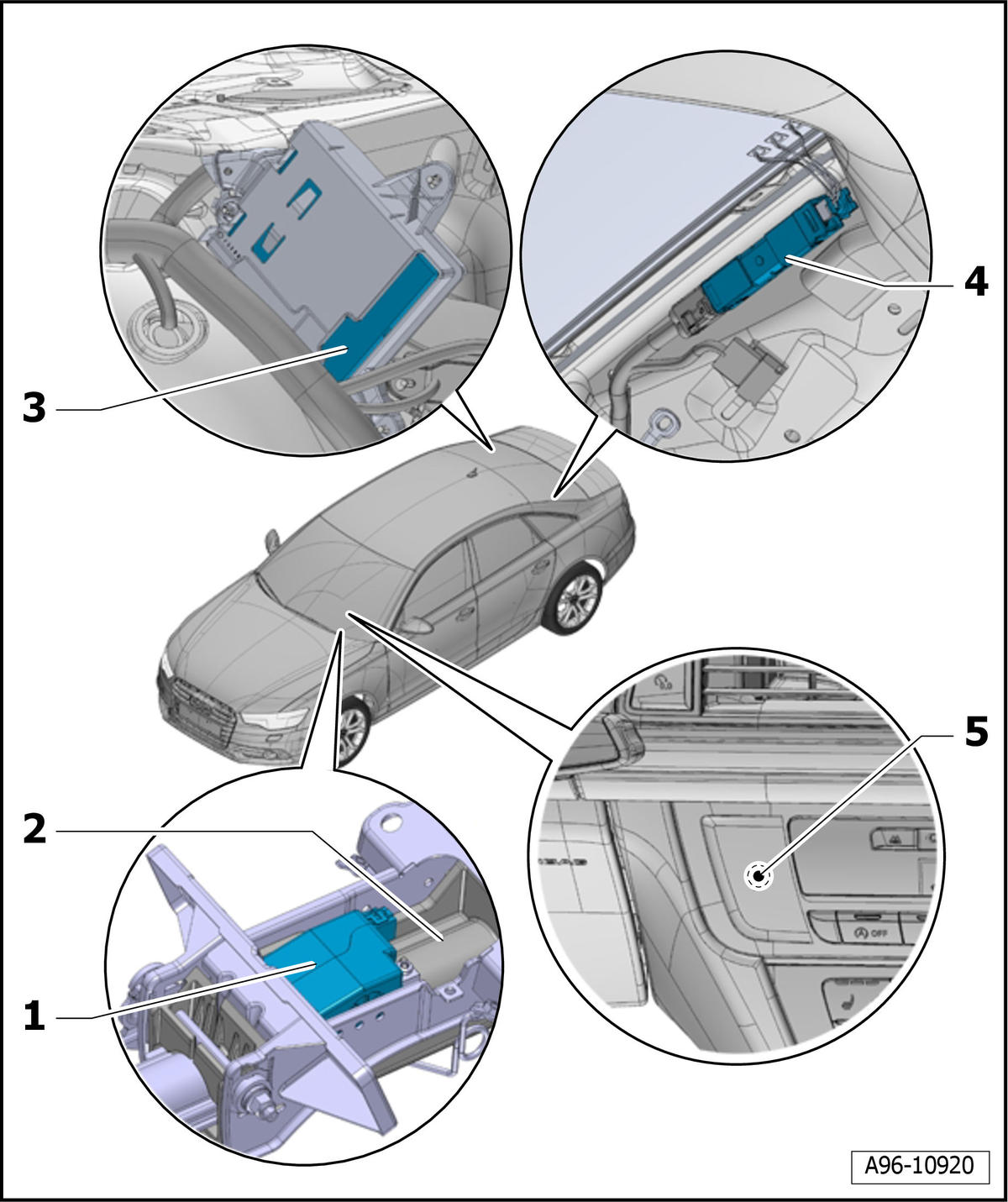

Fig 1: Identifying Access/Start Authorization System Overview

Courtesy of AUDI OF AMERICA, LLC

1. Electronic Steering Column Lock Control Module -J764-
   • Removal and installation, refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING
2. Steering Column
3. Comfort System Central Control Module -J393-
   • Overview, refer to
4. Antenna Amplifier 2 -R111-
   • With central locking and anti-theft alarm system antenna -R47-
   • Removal and installation, refer to
5. Anti-Theft Immobilizer Reading Coil -D2-
   • Removal and installation, refer to Anti-Theft Immobilizer Reader Coil -D2-
