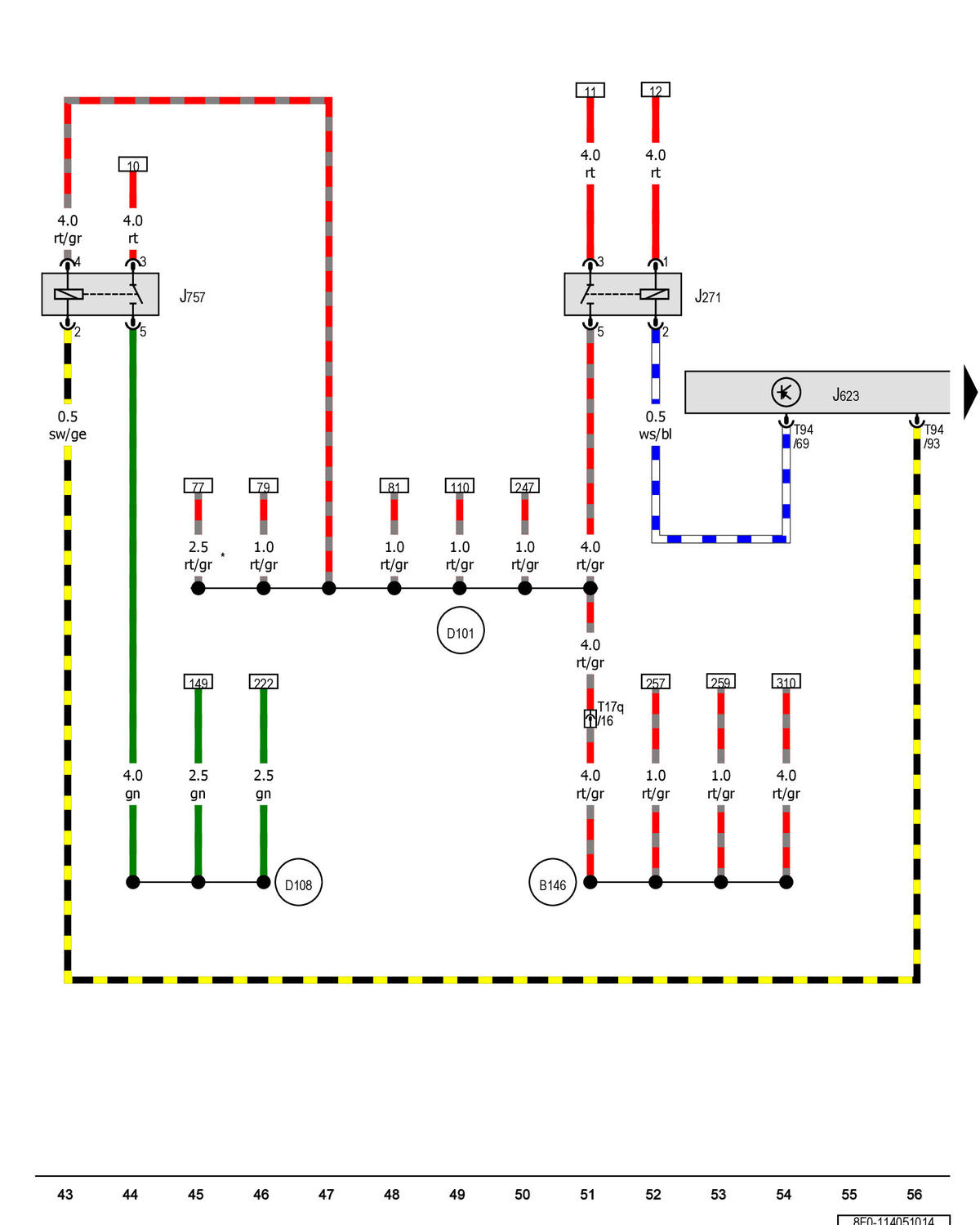

MOTRONIC Engine Control Module Power Supply Relay, Engine Component Power Supply Relay: Notes

GWW8F0-114051014

Courtesy of AUDI OF AMERICA, LLC
