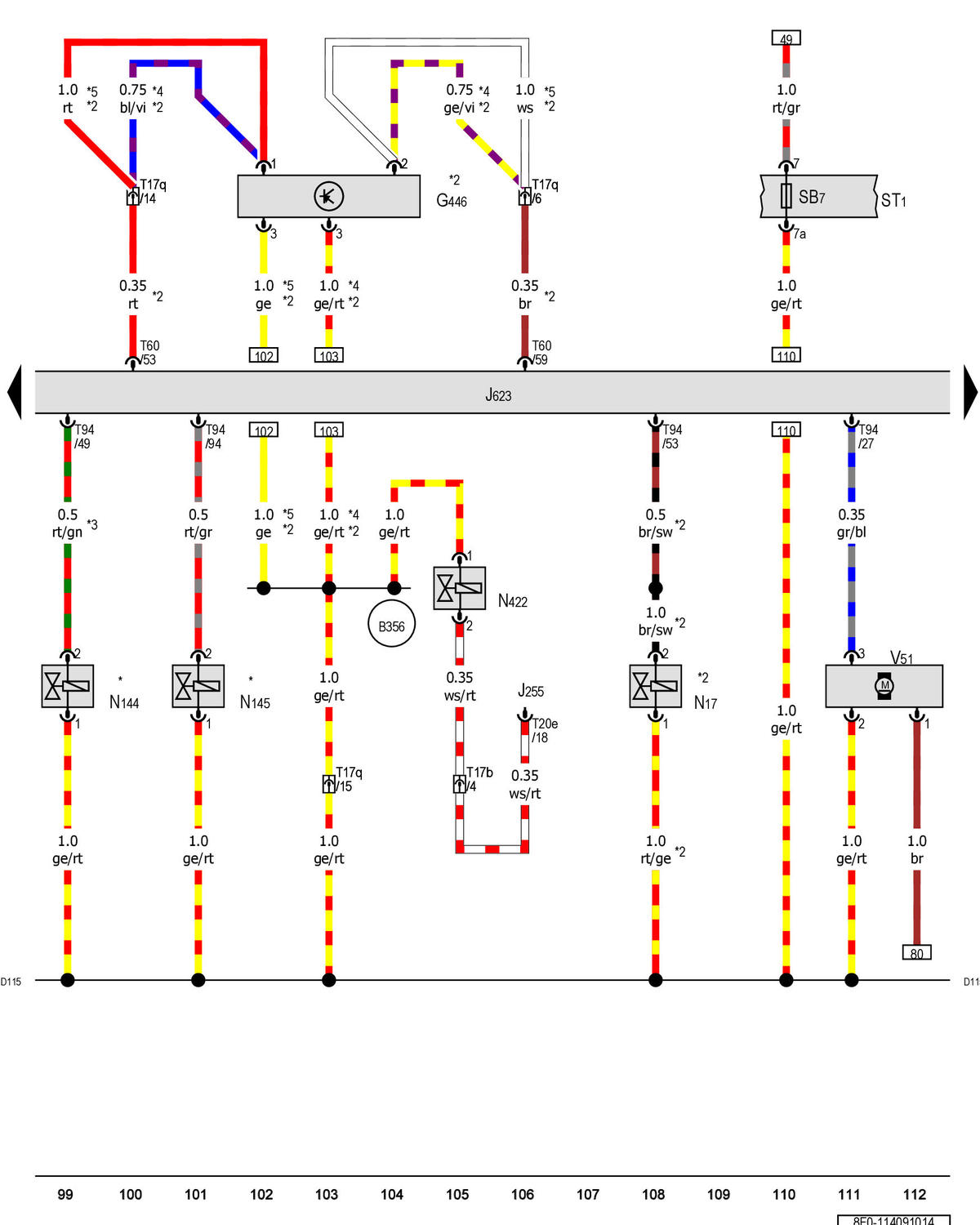

Fuel Quality Sensor, Left ELECTROHYDRAULIC Engine Mount Solenoid Valve, Right ELECTROHYDRAULIC Engine Mount Solenoid Valve, After-Run Coolant Pump: Notes

GWW8F0-114091014

Courtesy of AUDI OF AMERICA, LLC
