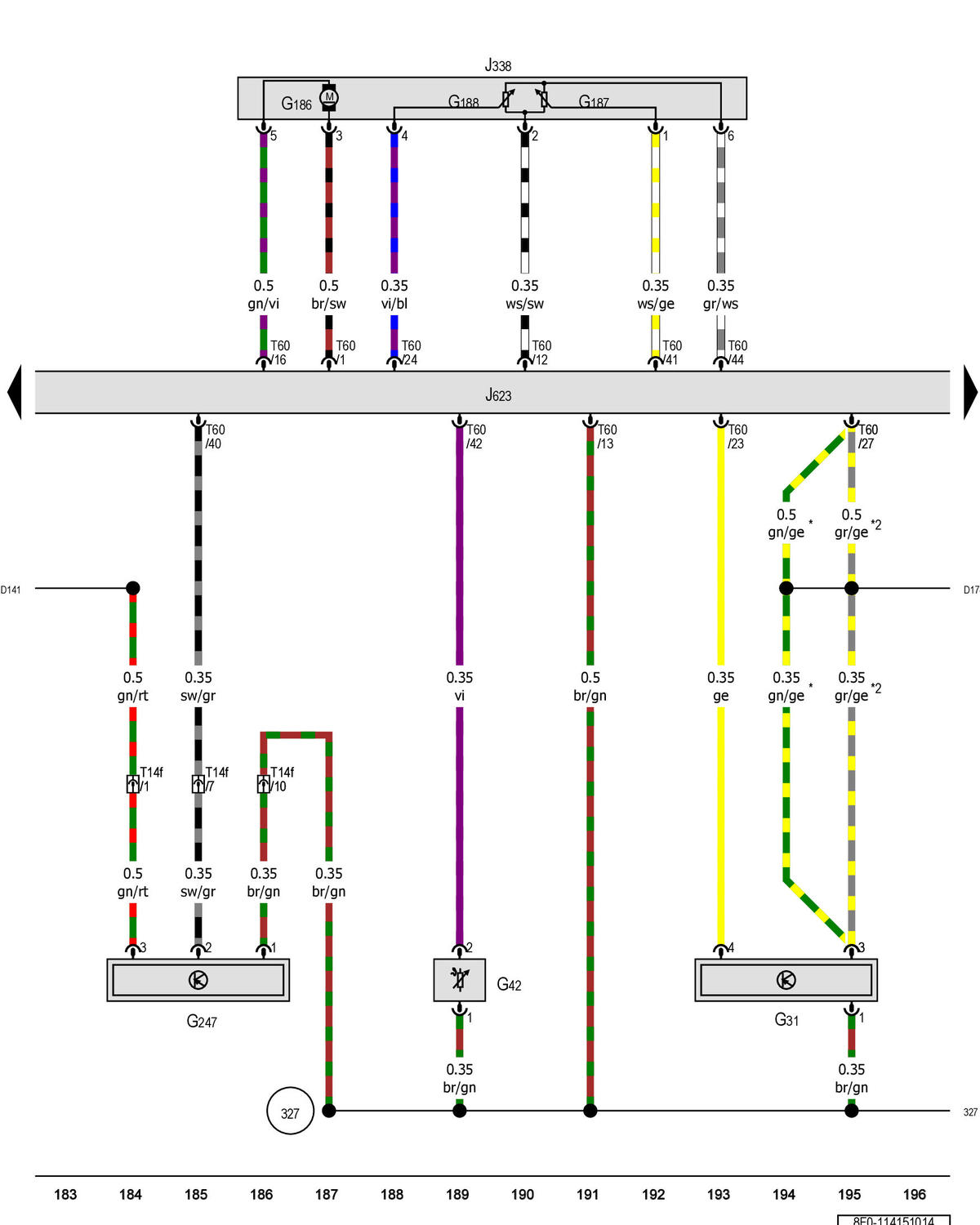

Fuel Pressure Sensor, Throttle Valve Control Module: Notes

GWW8F0-114151014

Courtesy of AUDI OF AMERICA, LLC
