Seat Side Trim On Sill Panel Side/Front Seat Trim, Removing And Installing, Multi-Contour Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- Move the front seat all the way to the rear and then into its highest position.

-- Move the seat depth adjuster to the rear.

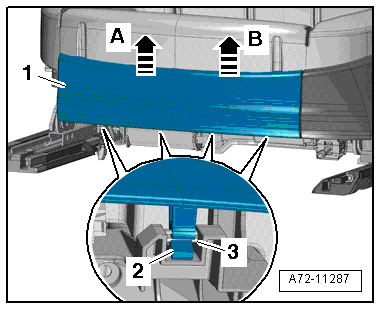

-- Release lower retaining tabs -2- on the holder -3- and pull front trim -1- upward -A and B arrows-.

-- Move the front seat all the way forward/up.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front belt end fitting. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .

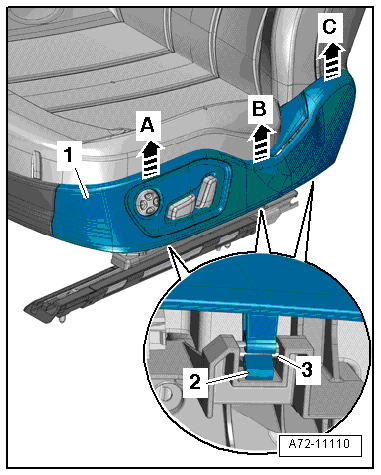

-- Pull sill side trim -1- upward and detach at the holder -A, B and C arrows- by releasing the lower retaining tabs -2- on the holder -3-.

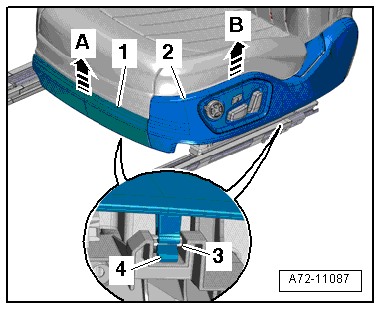

-- Pull off sill side trim -2- together with front trim -1- -A and B arrows- and remove.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

In order to prevent damage, make sure that all retaining tabs -4- on the holder -3- are correctly released.

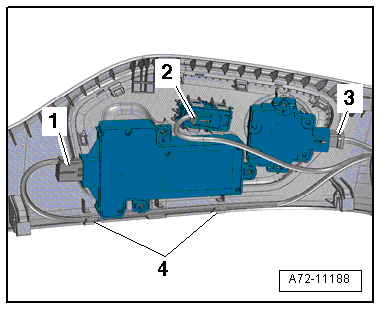

-- Disconnect the connectors:

Courtesy of AUDI OF AMERICA, LLC

Driver Seat Switch Module -E663- /Front Passenger Seat Switch Module -E664-
Driver Side Massage Function Button -E670- /Front Passenger Massage Function Button -E671-
Driver Seat Switch Module 2 -E667- /Front Passenger Seat Switch Module 2 -E668-

-- Free up the wire from the bracket -4-.

-- Remove sill side trim.

Courtesy of AUDI OF AMERICA, LLC

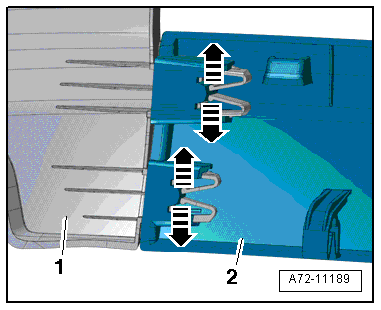

-- Disconnect sill side trim -1- from the front trim -2- by releasing retaining tabs -arrows-.

Seat Side Trim Bracket, Removing

Courtesy of AUDI OF AMERICA, LLC

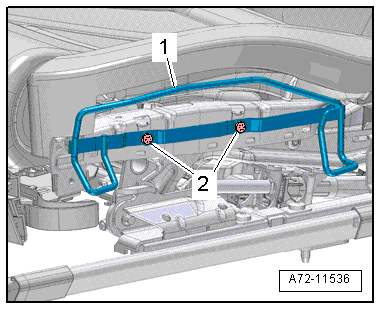

-- Disengage the sill-side seat cover molding on the lower seat frame. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

-- Remove the bolts -2- and remove the bracket -1-.
