Seat Height Adjustment Motor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the sill-side trim:

For the standard seat/sport seat/power sport seat. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (POWER) .
For a Multi-contour seat. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE/FRONT SEAT TRIM, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

-- Disconnect harness connector -1- at seat height adjustment motor -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Relieve the torsion bar tension. Refer to TORSION BAR, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Threaded hole in the seat pan damaged or destroyed.

When removing or installing, the adjusting spindle/seat pan bolting torque must be relieved.

Risk of damage to the bushing -3- in the bearing point (adjusting spindle/seat pan bolting).

The bushing cannot be replaced with shop materials.
If the bushing is damaged, the corresponding assembly parts must be replaced.

There is a risk of damaging the threads on the bolt -2-.

The bolt on the adjusting spindle has left-hand threads.

-- Remove bolt -2- on the seat height adjustment motor adjusting spindle -1-.

-- Remove bolt -1- for seat angle adjustment motor adjusting spindle (preset by the manufacturer).

Courtesy of AUDI OF AMERICA, LLC

-- Move the upper seat frame as far upward as possible and support with a suitable wood block on the :VAS6136 .

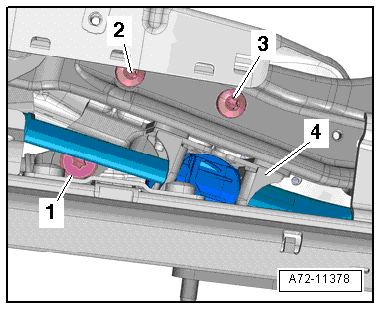

-- Remove the bolts -2 and 3-.

-- Remove fixture with height adjustment motor -4- from the seat pan.

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove bracket -2- from the seat height adjustment motor -3-.
