Overview - Seat Pan, Seat Cushion Blower Fans

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Seat Cushion Fan, Standard Seat/Sport seat/Super Sport seat. Refer to OVERVIEW - SEAT PAN, SEAT CUSHION BLOWER FANS

Seat Cushion Fan, Multi-contour Seat through 08/2012. Refer to OVERVIEW - SEAT PAN, SEAT CUSHION BLOWER FANS

Seat Cushion Fan, Multi-contour Seat from 09/2012. Refer to OVERVIEW - SEAT PAN, SEAT CUSHION BLOWER FANS

Seat Cushion Fan, Standard Seat/Sport Seat/Super Sport Seat

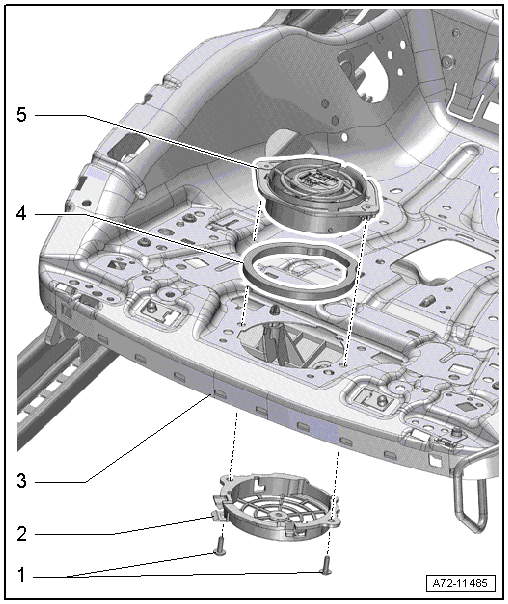

Fig 1: Seat Pan, Seat Cushion Blower Fans Exploded View
GWWA72-11485Courtesy of AUDI OF AMERICA, LLC
  1. Screws
    • 1.5 Nm
  2. Cover Grille
  3. Front Seat
  4. Seal
    • Install between the lower seat frame and the fan
  5. Driver Seat Cushion Blower Fan -V390- /Driver Seat Cushion Blower Fan 2 -V419-

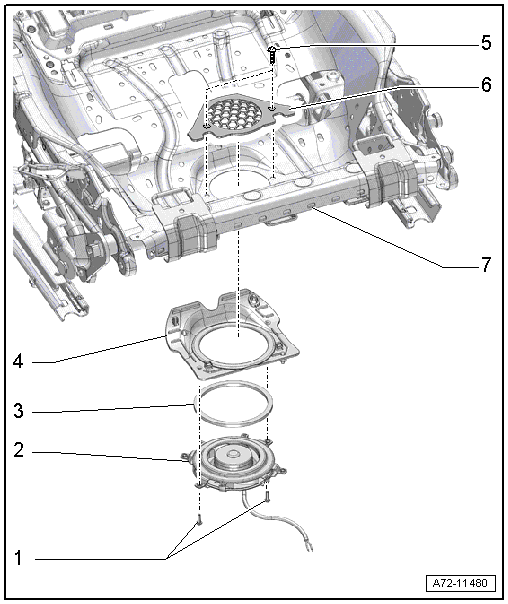

Seat Cushion Fan, Multi-contour Seat through 08/2012

GWWA72-11480Courtesy of AUDI OF AMERICA, LLC
  1. Screws
    • 2.4 Nm
  2. Driver Seat Cushion Blower Fan -V390-
  3. Seal
    • Place between the fan and the bracket
  4. Bracket
  5. Bolt
    • 2.4 Nm
  6. Grille
  7. Seat Pan

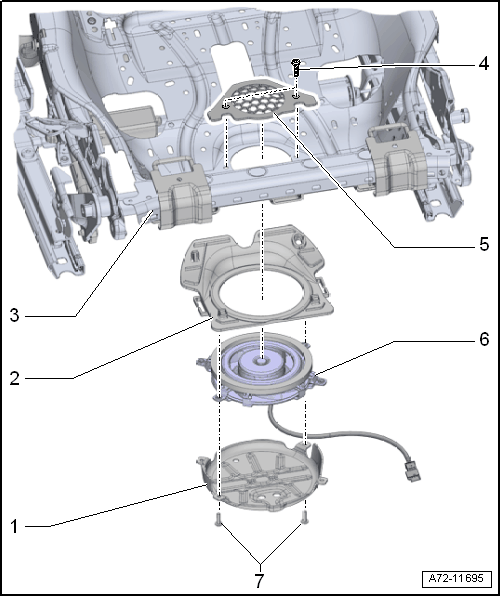

Seat Cushion Fan, Multi-contour Seat from 09/2012

GWWA72-11695Courtesy of AUDI OF AMERICA, LLC
  1. Cover
  2. Bracket
  3. Seat Pan
  4. Screws
    • 2.4 Nm
    • Quantity: 2
  5. Grille
  6. Driver Seat Cushion Blower Fan -V390-
  7. Bolt
    • 2.4 Nm
    • Quantity: 2
