Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Place the right front seat as far towards the rear as possible.
-- Turn off the ignition.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
-- Remove the nut -2- and then remove the Ground (GND) cable -1-.
-- Open the tab -4- to disconnect the connector -3-.

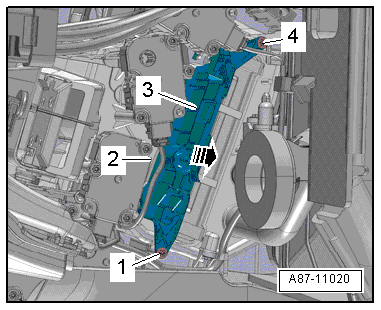

-- Remove the bolts -1 and 4-.
WARNING:
There is a risk of burns.
- If the Auxiliary Heater Heating Element -Z35- was in operation before being removed, it may still be hot.
- Do not touch the hot radiating surface of the Auxiliary Heater Heating Element -Z35-.
-- Remove the heating element -3- from the air distribution housing -2- -arrow-.
