Seat Belt Height Adjuster, Removing And Installing: Installing: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:
-- If parts of the seat belt system are removed due to an accident, replace the belt system bolts.
NOTE:
Replacement seat belt height adjusters are delivered with the slide in the lowest position (installation position).
If removed seat belt height adjusters are reinstalled, these should be placed in the lowest position (installation position).

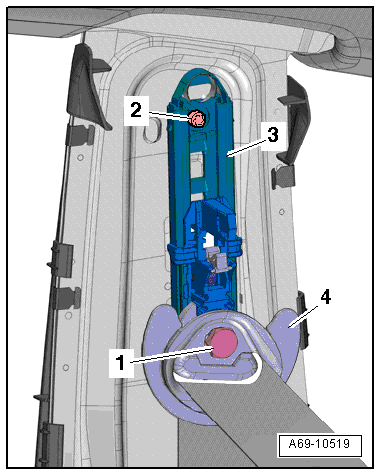

-- Hook seat belt height adjuster -3- into the B-pillar.
-- Tighten the bolt -2-.
-- Install the seat belt relay -4- and tighten the bolt -1-.
NOTE:
The belt height adjuster button must not be pressed when installing the upper B-pillar trim with slide.
-- First, insert the B-pillar trim panel -3- upward into the mount on the roof.
- The mount -2- for the sliding piece of the upper B-pillar trim panel must engage in the retaining pin -1- on the seat belt height adjuster in direction of -arrow-.
