Rear Seat Belt Guide, Removing And Installing, Sedan: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- For vehicles with a fixed rear seat backrest: remove the rear seat backrest. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- for vehicles with a multi-contour seat: remove the multi-contour seat. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, MULTI-CONTOUR SEAT .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING, SEDAN .

-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

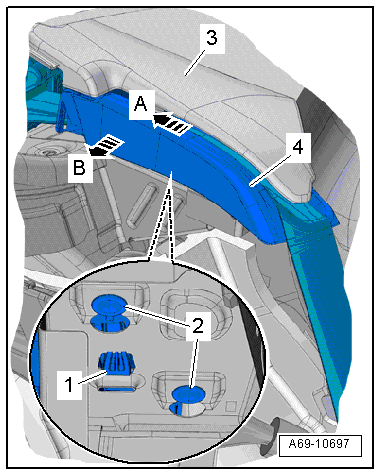

Do not rotate bolts -2- under any circumstances when removing and installing the seat belt guide -4-. They are set by the manufacturer.
Replace the entire seat belt guide if damaged.

-- Push the seat belt guide retaining hook -1- upward and hold it there.

-- Lift the C-pillar trim panel -3- slightly and push the seat belt guide toward the rear -arrow A- until the bolt heads -2- can be disengaged from the bracket on the body.

-- Remove the seat belt guide -4- toward the inside of the vehicle -arrow B-.

-- Rear outer right seat belt guide: Disconnect the connector from the Rear Parking Aid Warning Buzzer -H15-.

-- Thread the seat belt webbing out and remove the seat belt guide.
