Plenum Chamber Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the seal -7-.

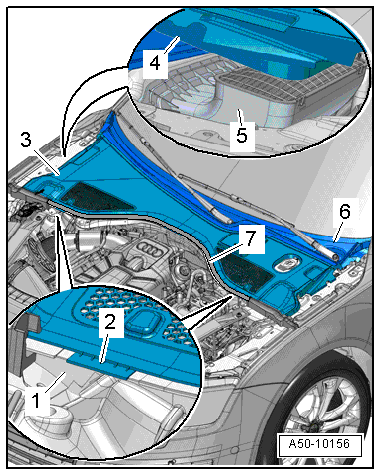

GWWA50-10156Courtesy of AUDI OF AMERICA, LLC

-- Lift the plenum chamber cover -3- far enough so that the frame -4- is above the air intake shroud -5- for the fresh air blower.

-- Remove the plenum chamber cover from the cowl panel -6-.

NOTE:

The tab -2- over the cover -1- will get damaged if the seal is not removed.
