Ribbed Belt, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Risk of damage due to reversed running direction on a used ribbed belt.

  • Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

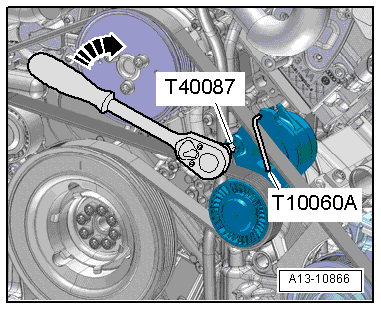

-- Turn the tensioning element clockwise using the :T40087  -arrow- to release the tension on the ribbed belt.

GWWA13-10866Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt and secure the tensioning element with :T10060A  .
