Ribbed Belt TENSIONER, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the ribbed belt from the tensioner. Refer to RIBBED BELT, REMOVING AND INSTALLING .

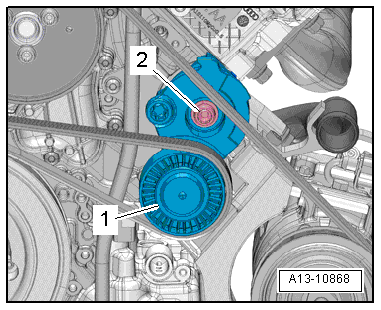

-- Remove the bolt -2- and remove the ribbed belt tensioner -1-.

GWWA13-10868Courtesy of AUDI OF AMERICA, LLC
