Headlamp Range Control Adjuster -E102- TRIM, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the instrument panel cover on the driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
-- Remove the headlamp range control adjuster. Refer to Controls .

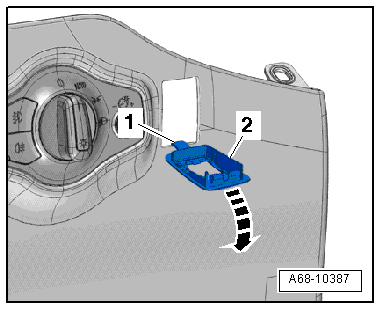

-- Unclip the trim -2- at the top and move it forward -arrow-.
-- Remove the trim from the cut-out in the instrument panel cover on the driver side.
