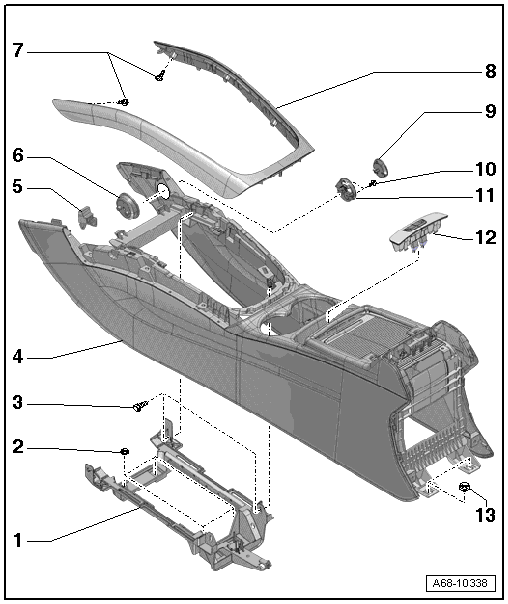

Overview - Center Console
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For the center console
- Removing and installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Quantity: 4
- Bolt
- 3 Nm
- Quantity: 4
- Center Console
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
- Trim
- Quantity: 2
- Counterhold
- For the coat hooks
- Equipment levels
- Removing and installing. Refer to COAT HOOKS, REMOVING AND INSTALLING .
- Bolt
- 1.4 Nm
- Quantity: 8

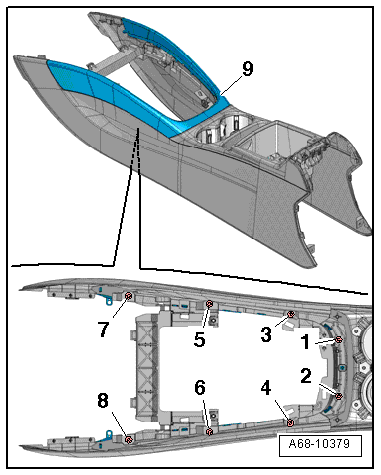

- Tightening sequence INSTALLING (See Figure)
- Trim Molding
- For the center console
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Coat Hooks
- Equipment levels
- Removing and installing. Refer to COAT HOOKS, REMOVING AND INSTALLING .
- Bolt
- 1.4 Nm
- Quantity: 2
- Mount
- For the coat hooks
- Equipment levels
- Removing and installing. Refer to COAT HOOKS, REMOVING AND INSTALLING .
- Switch/Liner Trim
- Equipment levels
- Removing and installing. Refer to SWITCH TRIM, REMOVING AND INSTALLING .
- Nut
- 4 Nm
- Quantity: 2
