Sill Side Trim, Removing And Installing, Standard/Sport Manual Seats: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

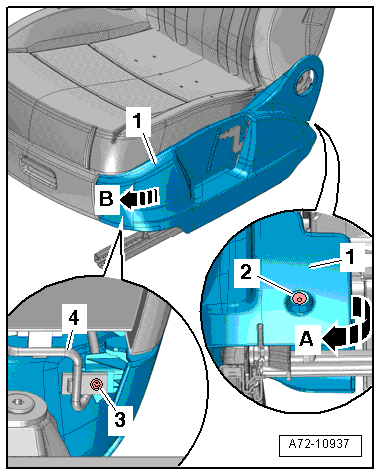

Fig 1: Removing Trim, Sill Side

Courtesy of AUDI OF AMERICA, LLC

-- Tilt seat all the way up.

-- Remove backrest adjustment wheel. Refer to BACKREST ADJUSTER, REMOVING AND INSTALLING .

-- Remove seat height adjustment handle. Refer to SEAT HEIGHT ADJUSTER, REMOVING AND INSTALLING .

-- Remove the screw -3- and the remove the seat side trim spreader clip -2-.

-- Disengage the side trim -1- from the rear of the seat -arrow A-.

-- Pull the rear side trim slightly upward, remove it from the bracket -4- and then remove it forward -arrow B-.

-- Versions with four-way lumbar support: Disconnect the connector -4- on the lumbar support adjustment switch -1-.

Fig 2: Disconnect Connector

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -item 2-.

-- Remove the seat side sill panel trim -3-.

Bracket for Seat Side Panel

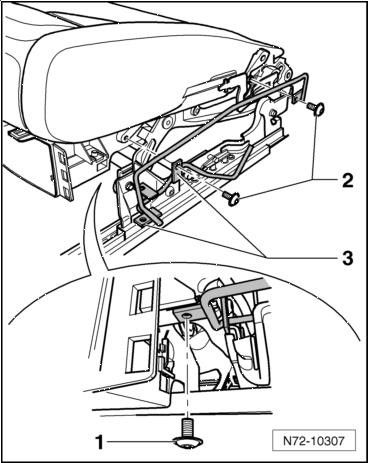

Fig 3: Identifying Bolts -1 To 2- And Bracket -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -1-, if applicable.

-- Remove the screws -2- and remove the bracket -3- from the front seat.
