Left Flange Shaft, Removing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2017 Audi S5, 2016 Audi S5, 2015 Audi S5, 2014 Audi S5, and 2013 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

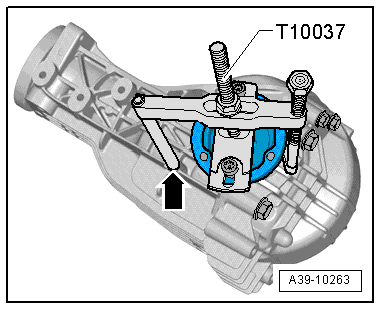

Fig 1: Removing Left Flange Shaft
GWWA39-10263Courtesy of AUDI OF AMERICA, LLC

-- Attach the T10037 to the housing -arrow- and remove the flange shaft.

-- Use a suitable tool to pry out the seal.

Fig 2: Prying Out Sealing Ring With Suitable Lever
GWWA39-0373Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Pay attention to the following:
