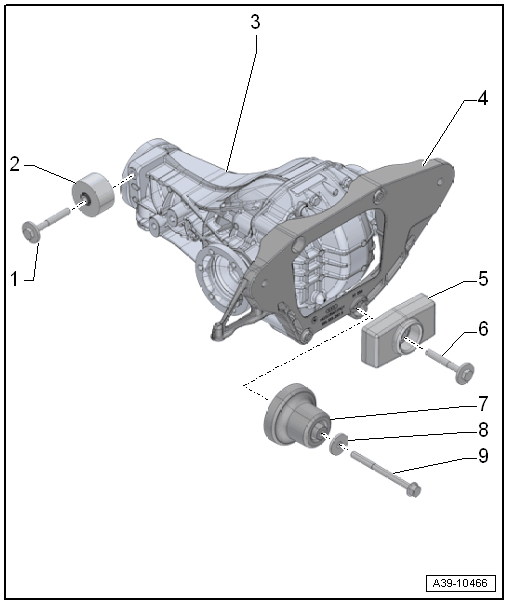

Balance Weight On The Rear Final Drive
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2017 Audi S5, 2016 Audi S5, 2015 Audi S5, 2014 Audi S5, and 2013 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 22 Nm
- Balance Weight
- Depending on the date of manufacturer
- Rear Final Drive
- All Vehicles except for Audi A8 and Q5 Hybrid removing and installing, refer to REAR FINAL DRIVE
- Audi A8, removing and installing, refer to the appropriate service information
- Audi Q5 Hybrid removing and installing, refer to the appropriate service information
- Crossmember
- Balance Weight
- Depending on the vehicle
- Bolt
- Tightening specification, refer to item 4
- Balance Weight
- Depending on the date of manufacturer
- Washer
- Bolt
- Tightening specification, refer to item 4
