Rear Seat Belt Latch, Removing And Installing, Right Rear Seat Belt Latch With Rear Belt End Fitting In The Center: Installing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

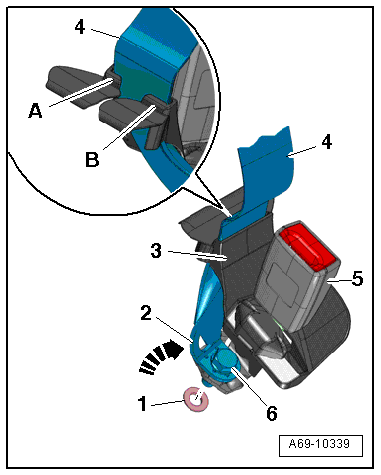

-- Replace the belt latch bolt.
-- Install the bolt into the belt anchor -2- and into the seat belt latch -5-.
-- Slide the sealing ring -1- over the bolt thread from underneath.
-- Turn the belt anchor clockwise until it stops -arrow-.
-- Insert the belt -4- first into the guide clip -B- (long) and then into the guide clip -A- (short) -3-.
-- Press the bolt against the seat belt latch and tighten the seat belt between the bolt and the clip.
Installation is performed in reverse order of removal, while noting the following:
-- Align the seat belt latch to the direction of travel when bolting it on.
- The recesses on the bolting surface of the seat belt latch must lie over the anti-twist mechanism on the floor panel.
