Seat Pan Cover And Padding, Separating, Seat Pan With Seat Depth Adjuster: Removing

Fig 1: Identifying Cover -1-, Channels -2-, Seat Depth Adjuster Cushion -3-, Tabs -4- & Catches -5-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover and padding from the seat pan and seat depth adjuster. Refer to SEAT PAN COVER AND PADDING, REMOVING AND INSTALLING, SEAT PAN WITH SEAT DEPTH ADJUSTER .

-- Unclip the retaining channels -2- from the catches -5-.

-- Disengage the cover from the tabs -4- on both sides.

-- Remove the support with seat depth adjuster cushion -3- from cover -1-.

Cover and Padding, Sport Seat, Separating

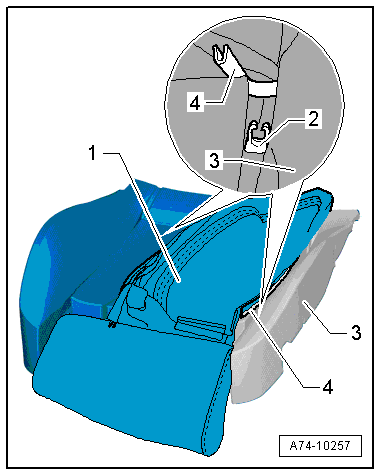

Fig 2: Cover & Upholstery, Sport Seat, Separating

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -1- from the padding -3- as far as possible.

-- Unclip retaining channel -4- from clips -2-.

-- Remove cover from cushion.

Versions with fabric covers:

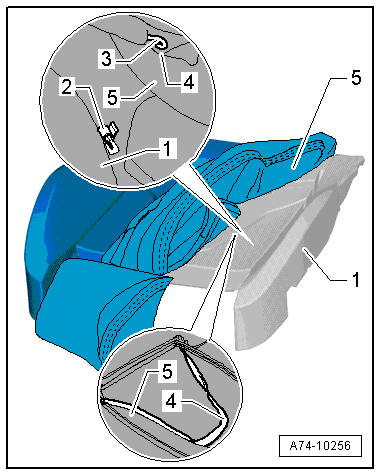

Fig 3: Identifying Contour Wire

Courtesy of AUDI OF AMERICA, LLC

-- Remove contour wire -3- that is inserted in the pocket -4- in cover -5- from clips -2-.

-- Remove the cover from the cushion -1-.

Versions with leather covers:

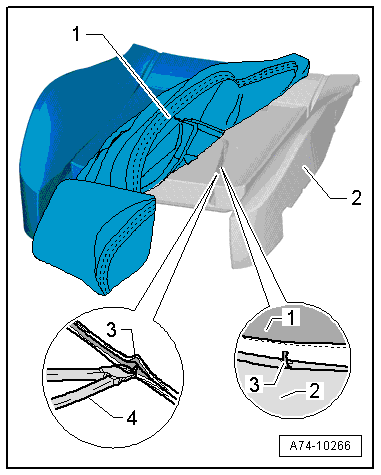

Fig 4: Identifying Cushion Cover

Courtesy of AUDI OF AMERICA, LLC

-- Cut through the upholstery clips -3- using pliers -4-.

-- Remove the cover -1- from the cushion -2-.

Cover and Padding, Super Sport Seat, Separating

Fig 5: Cover & Upholstery, Sport Seat, Separating

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -1- from the padding -3- as far as possible.

-- Unclip retaining channel -4- from clips -2-.

Versions with fabric covers:

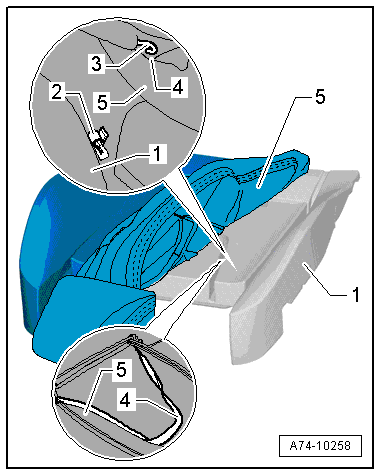

Fig 6: Removing Contour Wire

Courtesy of AUDI OF AMERICA, LLC

-- Remove contour wire -3- that is inserted in the pocket -4- in cover -5- from clips -2-.

-- Remove the cover from the cushion -1-.

Versions with leather covers:

Fig 7: Identifying Cushion Cover

Courtesy of AUDI OF AMERICA, LLC

-- Cut through the upholstery clips -3- using pliers -4-.

-- Remove the cover -1- from the cushion -2-.
