Left Charge Air Cooling Circuit Radiator
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2017 Audi S5, 2016 Audi S5, 2016 Audi S4, 2015 Audi S5, and 2015 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

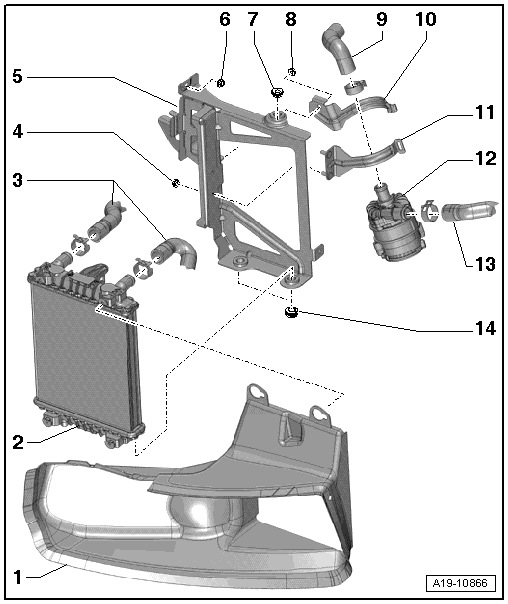

- Air Guide
- Left Charge Air Cooling Circuit Radiator
- Removing and installing. Refer to LEFT CHARGE AIR COOLING CIRCUIT RADIATOR, REMOVING AND INSTALLING .
- Coolant Hoses
- Nut
- 9 Nm
- Bracket
- Nut
- 9 Nm
- Rubber Bushing
- For the radiator
- Nut
- 9 Nm
- Coolant Hose
- Bracket
- Bracket
- Charge Air Cooling Pump -V188-
- Removing and installing. Refer to Charge Air Cooling Pump -V188-, REMOVING AND INSTALLING .
- Coolant Hose
- Rubber Bushing
- For the radiator
-- Remove the old O-ring -2- in the coolant hose -3-.
-- Coat the new O-ring with coolant and install it in the coolant hose.
-- Press the coolant hose onto the connection -1- until it engages audibly.
-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
