Left Charge Air Cooling Circuit Radiator, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2017 Audi S5, 2016 Audi S5, 2016 Audi S4, 2015 Audi S5, and 2015 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Front Bumper Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the left front wheel.

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Remove the air duct -1- -arrow-.

-- Remove the nuts -arrows- and lower the bracket -1- with the left charge air cooling circuit radiator just a little.

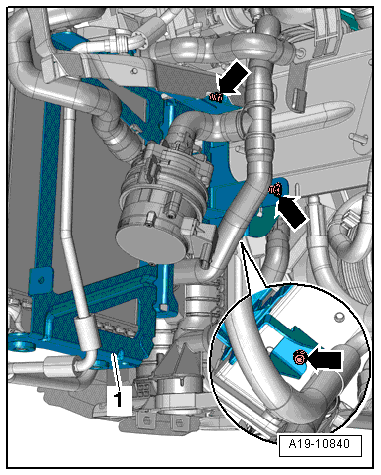

Fig 2: Identifying Nuts And Lower Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray VAS6208 under the left charge air cooling circuit radiator.

-- Clamp off and remove the coolant hoses with the Hose Clamps - Up To 25mm 3094 by loosening the hose clamps -arrows-.

-- Remove the left charge air cooling circuit radiator -1- upward from the bracket.

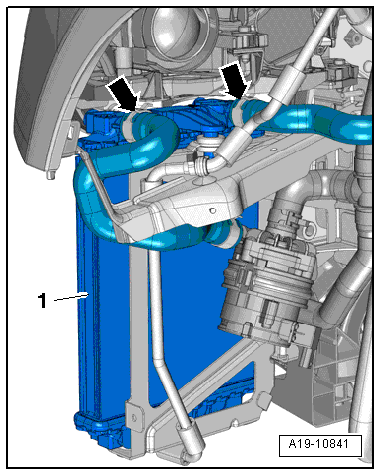

Fig 3: Identifying Left Charge Air Radiator

Courtesy of AUDI OF AMERICA, LLC
