Exhaust Pipes/Mufflers, Separating, Vehicles With A Rear Muffler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Chain Pipe Cutter VAS6254
A separating point has been provided in the connecting pipe for individual replacement of the center or rear muffler.
The separating point is marked by an indentation around the circumference of the exhaust pipe.

Procedure

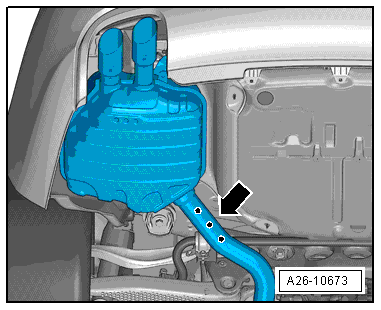

Fig 1: Separate Exhaust Pipe At A Right Angle At Separating Point

Courtesy of AUDI OF AMERICA, LLC

-- Separate the exhaust pipe at a right angle at the separating point -arrow- using a Chain Pipe Cutter VAS6254.

-- Position the clamping sleeve -arrow- on the center of the separating point

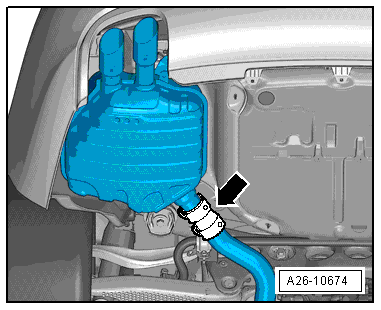

Fig 2: Positioning Clamping Sleeves On Center Of Separating Point

Courtesy of AUDI OF AMERICA, LLC

-- Install the clamping sleeve so that the ends of the bolt do not extend beyond the lower edge of the clamping sleeve.

Fig 3: Identifying Installed Position Of Rear Double Clamps

Courtesy of AUDI OF AMERICA, LLC

Threaded connection faces toward the left.

-- Install the exhaust system free of tension. Refer to EXHAUST SYSTEM, INSTALLING FREE OF TENSION, VEHICLES WITH A REAR MUFFLER .
