Rear Lid Lock Button in Luggage Compartment -E406-, REMOVING AND INSTALLING, AVANT: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

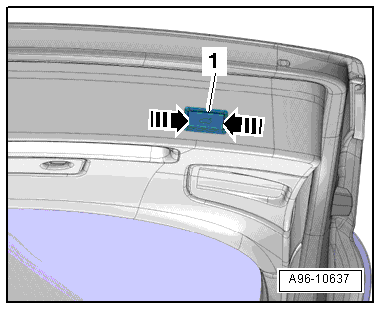

Fig 1: Rear Lid Lock Button in Luggage Compartment -E406-
GWWA96-10637Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Release the clips -arrows- on the Rear Lid Lock Button in Luggage Compartment -E406- -item 1- using the Wedge Set T10383/1.

-- Remove the switch carefully from the rear lid trim panel.

-- Disconnect the connector.
