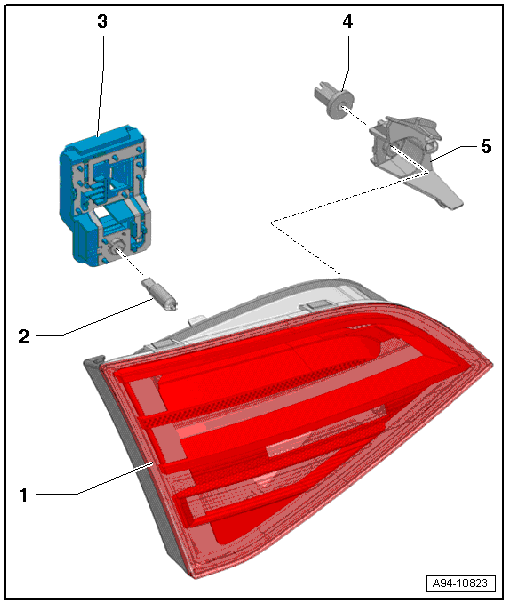

Overview - Rear Lid Tail Lamps, Led (AVANT Through My 2012)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Inner Tail Lamps
- Removing and installing. Refer to INNER TAIL LAMPS, REMOVING AND INSTALLING, LED, AVANT THROUGH MY 2012 .
- Rear Fog Lamp Bulb
- Left Rear Fog Lamp Bulb -L46-
- Right Rear Fog Lamp Bulb -L47-
- 12 V, 21 W
- Bulb, replacing. Refer to LEFT/RIGHT REAR FOG LAMP BULB -L46- / -L47-, REMOVING AND INSTALLING, LED, AVANT THROUGH MY 2012 .
- Lamp Socket
- Removing and installing. Refer to BODY BULB SOCKET, REMOVING AND INSTALLING, LED, AVANT THROUGH MY 2012 .
- Nut
- 3.5 Nm
- Clamping Bracket
- For securing tail lamp assembly to the rear lid
