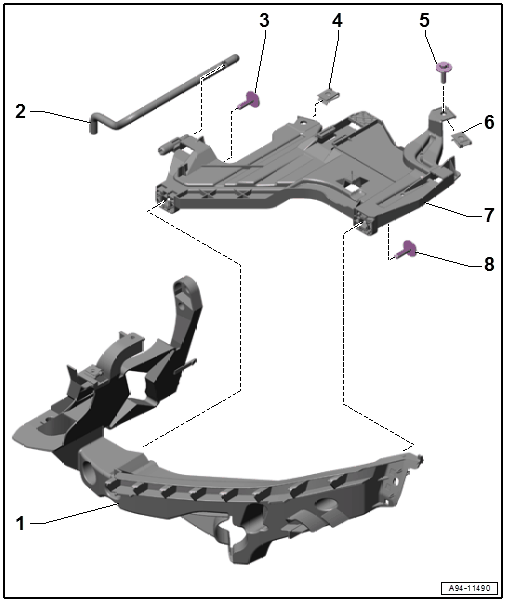

Overview - Headlamp Housing Mount (Vehicles Through My 2012)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For the headlamp housing mount
- Removing and Installing. Refer to HEADLAMP HOUSING MOUNT BRACKET, REMOVING AND INSTALLING .
- Ventilation Hose
- For the headlamp housing
- Screw
- 4.5 Nm
- Spring Nut
- Screw
- 4.5 Nm
- Spring Nut
- Mount
- For the headlamp housing
- Removing and installing. Refer to HEADLAMP HOUSING MOUNT, REMOVING AND INSTALLING .
- Screw
- 4.5 Nm
