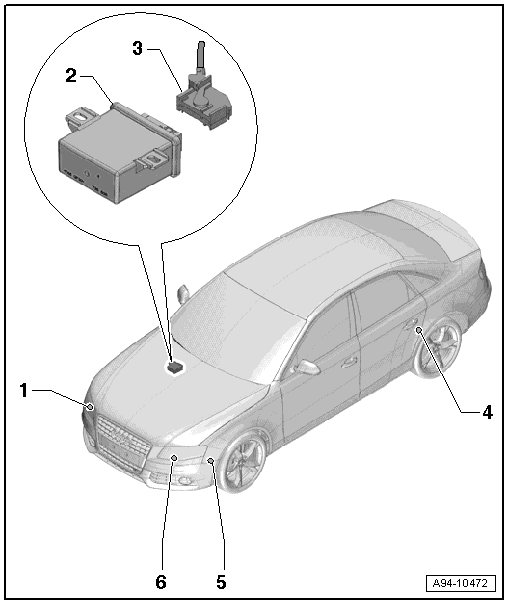

Overview - Automatic Head Lamp Range Control
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING .
- Control Module
- Vehicles without cornering lamps: Headlamp Range Control Module -J431-
- Vehicles with cornering lamps: Cornering Lamp and Headlamp Range Control Module -J745-
- Removing and installing. Refer to HEADLAMP RANGE CONTROL MODULE, REMOVING AND INSTALLING .
- Integrated in the Vehicle Electrical System Control Module -J519- depending on the version from MY 2013.
- Connector
- Left Rear Level Control System Sensor -G76-
- Component location: on the left rear control arm
- Removing and installing. Refer to LEFT/RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / -G77-, REMOVING AND INSTALLING .
- Left Front Level Control System Sensor -G78-
- Component location: on the left front control arm
- Installed depending on the date of manufacture.
- Removing and installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- Left Headlamp Beam Adjustment Motor -V48-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING .
