Lower Rear Lid Trim Panel, Removing And Installing (AVANT): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

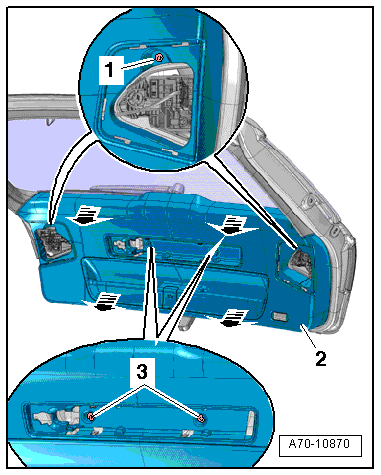

Fig 1: Removing Rear Lid Lower Trim Panel (Avant)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the luggage compartment lamp. Refer to [For engine(s) CCBA, CGXC, CTUB, CAED, CAEB, CALA, CPMB, CPMA] Lamps .

-- Remove the Rear Lid Lock Button In Luggage Compartment -E406-. Refer to OVERVIEW - LUGGAGE COMPARTMENT LAMPS .

-- Remove the tail lamp covers. Refer to TAIL LAMP COVER, REMOVING AND INSTALLING .

-- Remove the emergency triangle and its cover. Refer to EMERGENCY TRIANGLE COVER, REMOVING AND INSTALLING .

-- Remove the bolts -1- and -3-.

-- Carefully remove the lower rear lid lower trim panel -2- from the rear lid -arrows- by using the Pry Lever 80-200 to loosen the trim clips out of the rear lid.

-- Grab between the trim and the rear lid and disengage the remaining clips.

-- Remove the lower rear lid trim panel.
