Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL [08/2013 - ] - Step 1
  2. REMOVE SMOG VENTILATION SENSOR
    1. Disconnect the connector.

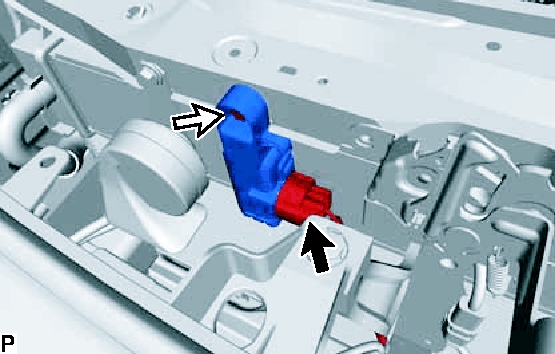

      Fig 1: Identifying Smog Ventilation Sensor
      GTY419999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and smog ventilation sensor.
