INSTALL HUMIDITY SENSOR (AIR CONDITIONING THERMISTOR ASSEMBLY)
1. Engage the 4 guides, and carefully install the humidity sensor (air conditioning thermistor assembly) to the glass surface, preventing air bubbles from forming between the contact surfaces.

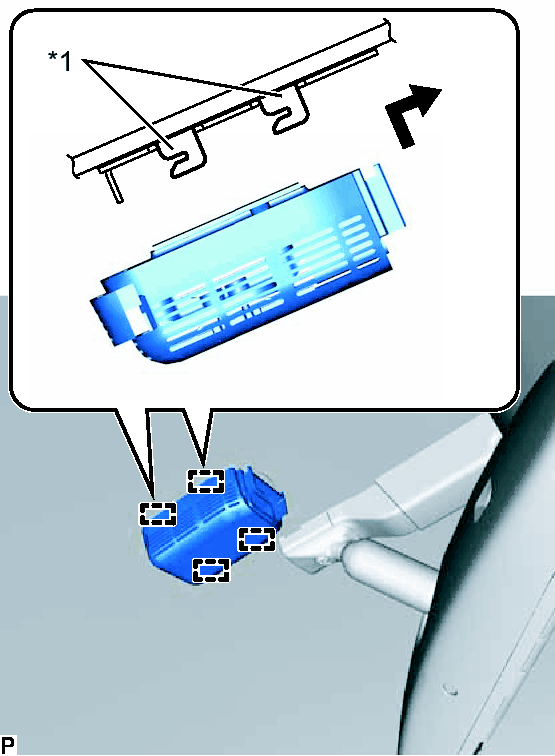

  Fig 1: Identifying Guides & Humidity Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Bracket
2. Push in the stopper.

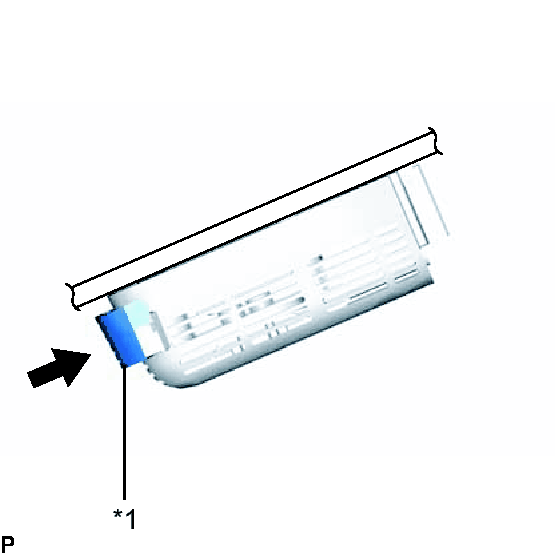

  Fig 2: Locating Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Stopper
3. Connect the connector.
INSTALL PROTECTOR
1. Engage the 2 claws to temporarily install the protector.
2. Engage the 2 guides to install the protector.

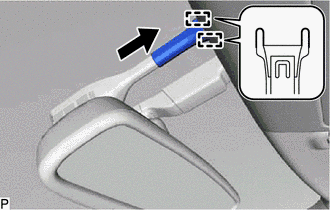

  Fig 3: Identifying Protector Claws & Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
